Application

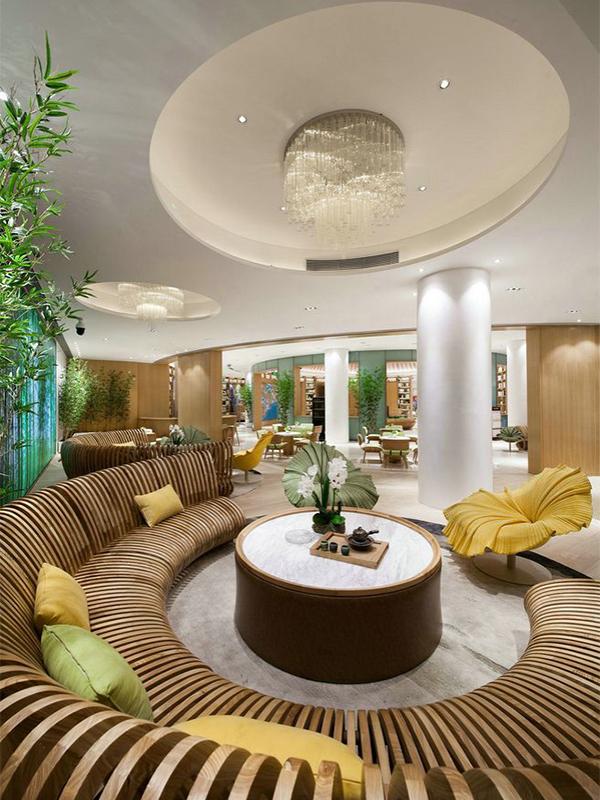

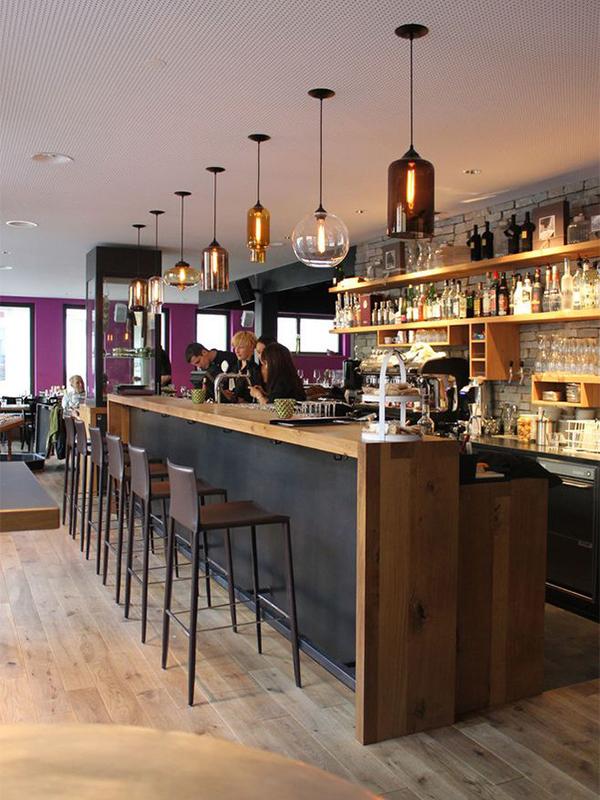

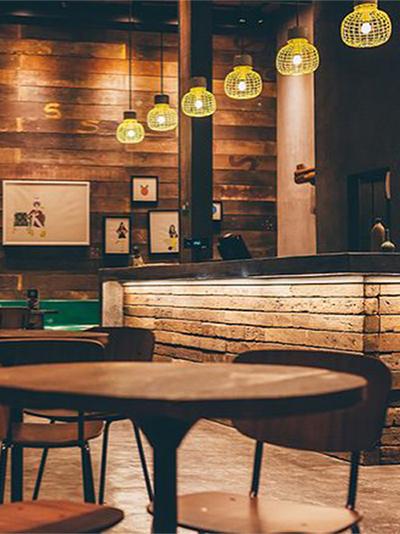

The color temperature of G4-2835 LED light bulb ranges from Warm White, Daylight White and Natural White. The LED light product is applicable in indoor illumination sites such as malls, hotels, bars and residential housing.
Specification

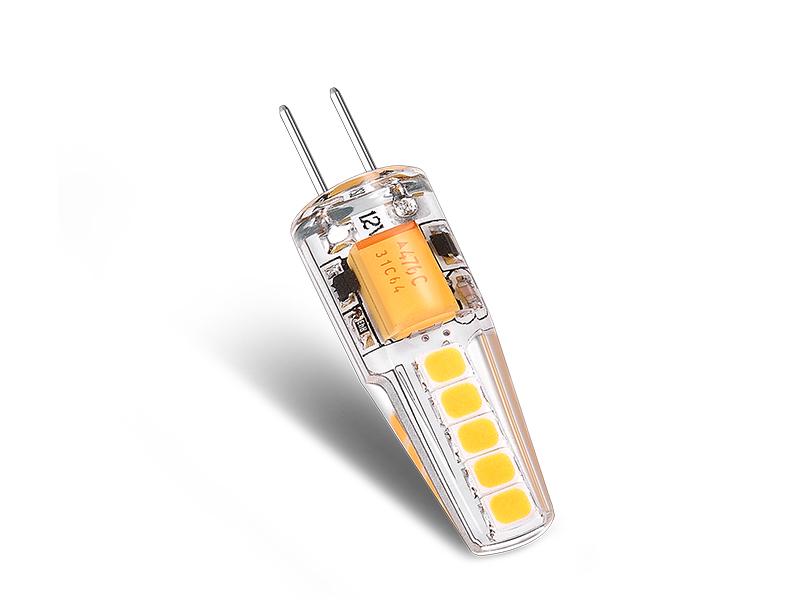

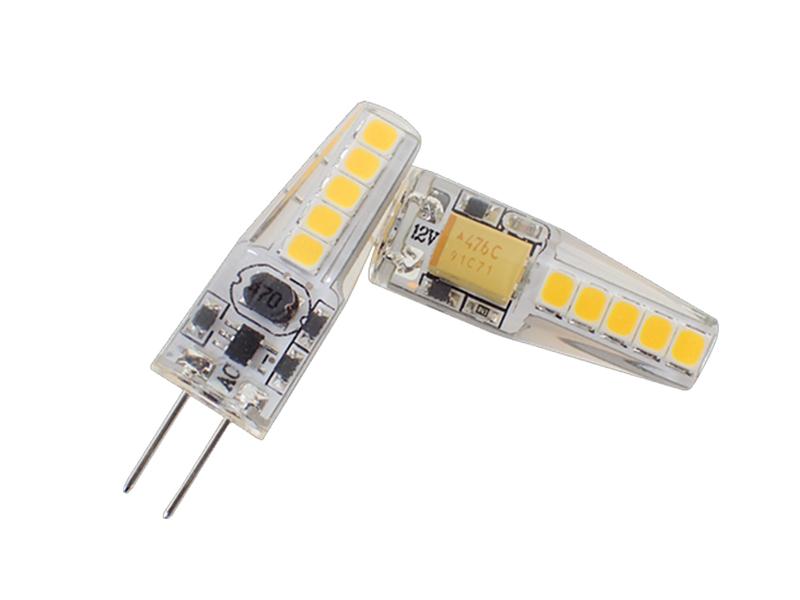

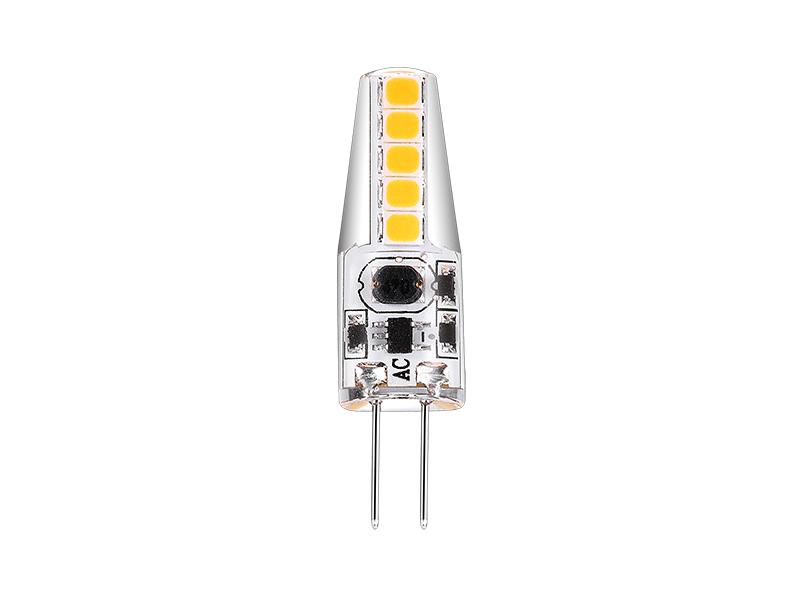

G4-2835-10LED AC/DC12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica gel | 2.3g | 220-240 lm | 110-120 l M/W | 2.0-2.2W | 0.7-1.0 | 360° | 10x2835SMD | No | CRI≥80 |
G4-2835MC-20LEDAC/DC 12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica gel | 3.3g | 300-320 lm | 120-130 l M/W | 2.4-2.6W | 0.7-1.0 | 360° | 20x2835SMD | No | CRI≥80 |
G4-2835B-24LEDAC/DC 12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica ge; | 4.5g | 160-180 lm | 85-95 l M/W | 1.6-1.8W | 0.7 -1.0 | 360° | 24x2835SMD | No | CRI≥80 |
G4-2835B-24LEDDC 12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | DC12V | Silica gel | 4.5g | 120-140 lm | 75-85 l M/W | 1.5-1.9W | =1.0 | 360° | 24x2835SMD | Yes | CRI≥80 |
G4-2835B-24LEDAC 220V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V/ 220V | Silica gel | 4.5g | 95-115 lm | 55-65l M/W | 1.8-2.2W | ＞0.35 | 360° | 24x2835SMD | No | CRI≥80 |
G4-2835C-33LEDAC 220V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220-240V | Ceramics +PC | 10.8g | 210-230 lm | 90-100 M/W | 2.3-2.5W | ＞0.48 | 360° | 33x2835SMD | No | CRI≥80 |
G4-2835C-51LEDAC110/220V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220-240V | Ceramics +PC | 11.2g | 310-330 lm | 90-100 M/W | 3.3-3.5W | ＞0.48 | 360° | 51x2835SMD | No | CRI≥80 |

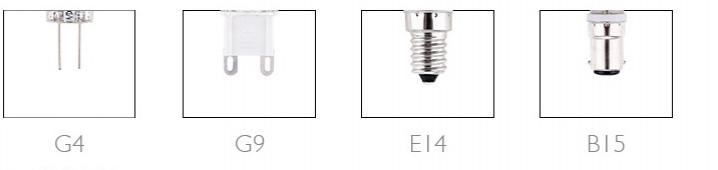

Lamp cap specification
Color temperature
-
Warm White (2800~3000K)
-
Natural White (4000~4500K)
-
Daylight White (6000~6500K)
Feature
1. G4-2835 LED light bulb adopts high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness.
2. The LED light bulb uses 2835 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. G4-2835 LED light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light has high luminous efficiency and outstanding CRI, and suffices to replace the traditional halogen lamps and filament lamps.
5. G4-2835 LED light bulb emits no heat radiation and contains no mercury, and thus exercises environmental friendliness.
6. The surface temperature of the LED light is controlled under 80°. The product uses JCET's Schottky diode as rectifier bridge, so there is no need for distinguishing the positive and negative electrodes.
7. All components of the G4-2835 LED are surface mounted. Such design enables high automation during manufacturing and increases production efficiency.
8. The lamp base of the LED light uses the international standard G4 in-line pins (0.7*12mm, 4mm interval between pins) to make installation convenient. The LED light can therefore be used in all kinds of quartz lamps to replace traditional halogen lamps.
9. Matching jig is adopted during the manufacturing of G4-2835 LED light bulb to avoid inclined pins. Besides sufficient gel is irrigated during manufacturing to ensure no PCB board is bare and secure waterproof property of the product.

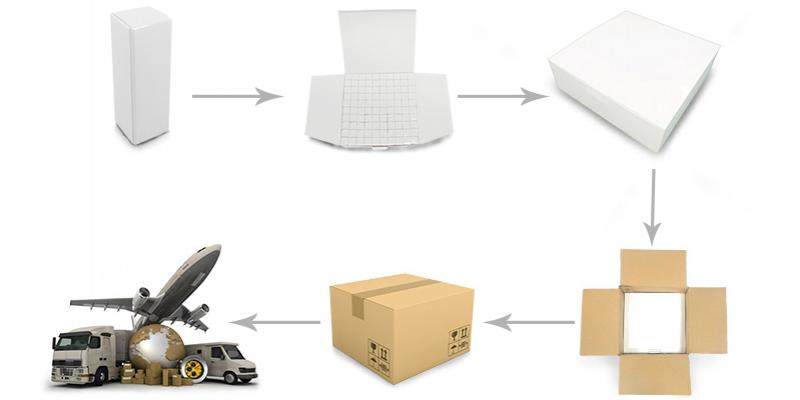

Packaging style
Shunfa is a reliable G4 LED bulb and SMD LED manufacturer, G4 bi-pin 2835 SMD LED light bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for residential lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G4 LED light bulbs with custom service.
