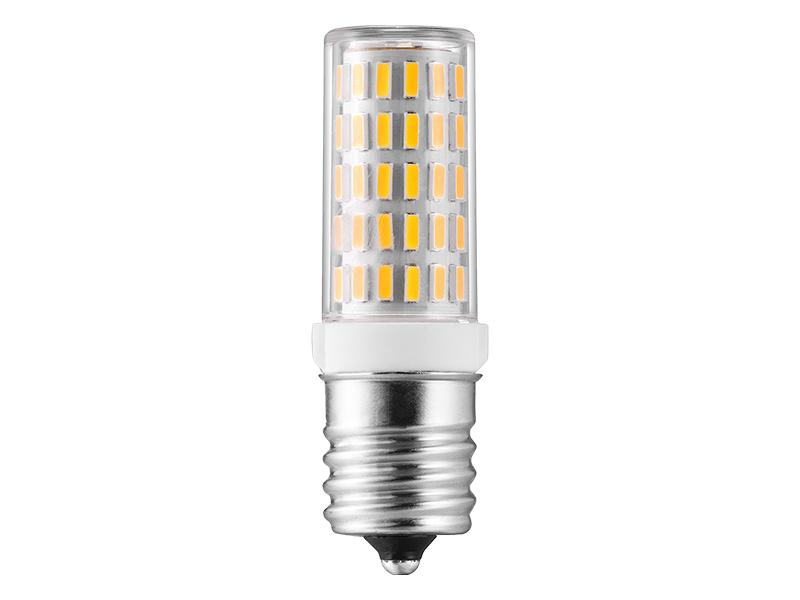

E17 SMD 4014 LED light features great heat radiation, strong insulation and high luminous efficacy. The LED light product is applicable in lighting sites such as malls, hotels, bars and residential housing.
Model | E17-4014-86LED AC110-130V |
Brand | I-SFG |
Pin category | E17 |
LED IC brand | Epistar |
LED beam model | 4014SMD |
LED beam number | 86 |
Input voltage | AC110-130(V) |
Actual power | 3.3-3.5W |
actual luminous flux | 360-380LM |
Actual luminous efficacy | 110-120LM/W |
Actual CRI | RA≥80 |
Color temperature | 2700-6500 (K) |
Dimensions(Φ*H) | 18.5mm*58mm |
Net weight (NM) | 18.2g |
Beam angle | 360° |
Effective service life | 30000-50000 (H) |
Material | Ceramic+PC |
Protection level | IP63 |
Certification | CE,ROHS |
1. E17 SMD 4014 LED light features fine heat radiation and high insulation.

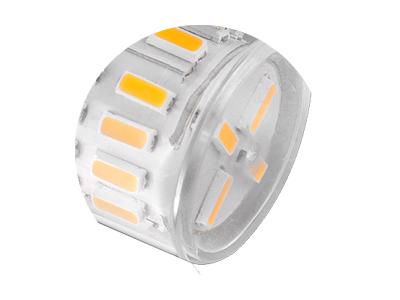

2. The LED light bulb adopts ceramic lamp body to achieve better heat radiation and exercises environmental protection.

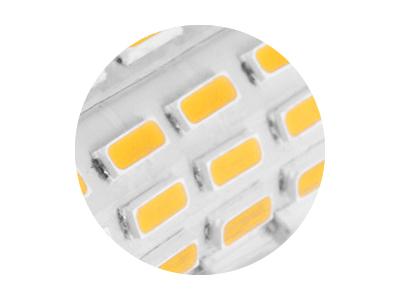

3. The LED light bulb uses 4014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
4. E17 SMD 4014 LED light adopts linear constant current control, which provides the LED light bulb with overheat and overvoltage protection and has the advantage of strobe-free, high reliability, etc.
5. The LED light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
6. E17 SMD 4014 LED light contains no mercury, generates no EMI radiation, and is environment friendly.
7. The LED light has high luminous power and outstanding color rendering property, and suffices to replace the traditional 30W-50W halogen lamps and filament lamps.

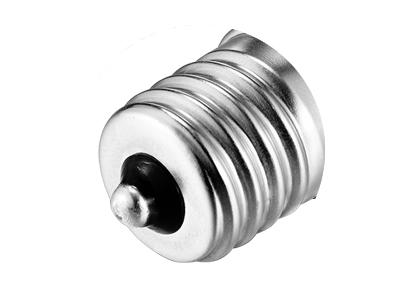

8. The lamp cap of E17 SMD 4014 LED light is of E17 model. The LED light product is thus easy to install and becomes an ideal option to replace traditional halogen lamps and filament lamps.
Shunfa is a reliable E17 LED bulb and SMD LED manufacturer, E17 SMD 4014 LED light supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for residential lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality E17 LED light bulbs with custom service.
