Application
R7S SMD 2835 LED light adopts Epistar's IC and 2835 SMD LED beads and features low energy consumption and long service life.The LED light product is widely used in lighting sites such as malls, hotels, bars and residential housing.
Specification

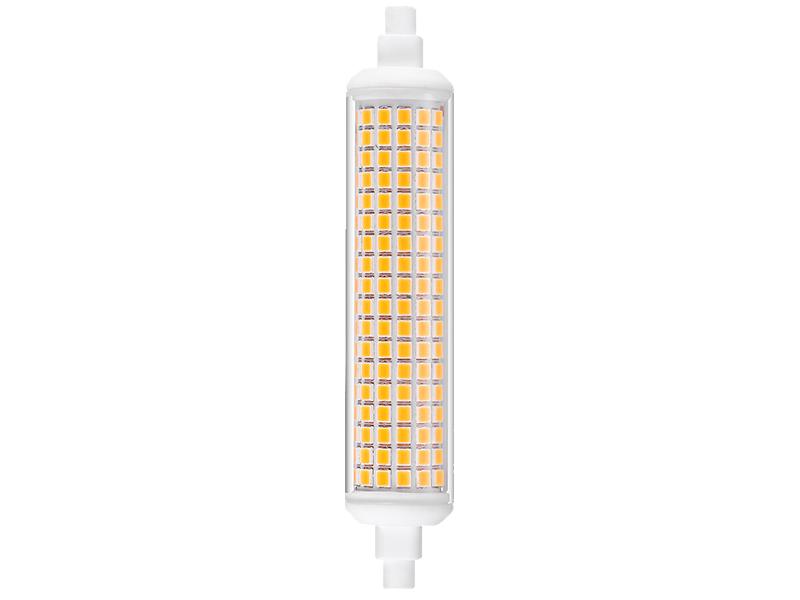

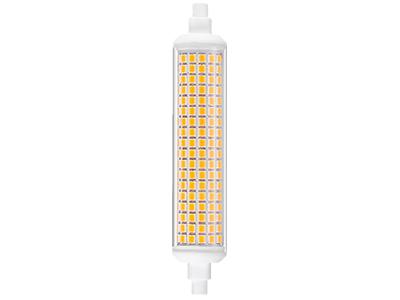

R7S-2835-58LED AC220V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC220V | Ceramics | 25.5g | 550-650 LM | 95-115lm/W | 6W | ＞0.6 | 360° | 58x2835SMD | White box | No |
R7S-2835-86LED AC220V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC220V | Ceramics | 43.5g | 950-1200 LM | 95-115 lm/W | 10W | ＞0.6 | 360° | 86x2835SMD | white box | No |
R7S-2835-116LED AC110/220V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC110V / 220V | Ceramics | 63.5g | 1200-1300 LM | 90-100 lm/W | 12W | ＞0.6 | 360° | 86x2835SMD | white box | No |
R7S-2835-36LED AC85-265V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC85 - 265V | Aluminum plate | 28g | 400-420 LM | 80-90 lm/W | 5W | ＞0.3 | 360° | 36x2835SMD | White box | No |
R7S-2835-72LEDAC85-265V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC85 - 265V | Ceramics | 45g | 750-800 LM | 90-100 lm/W | 8W | ＞0.3 | 360° | 72x2835SMD | White box | No |
R7S-2835-90LEDAC85-265V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC85 - 265V | Aluminum plate | 52g | 850-900 LM | 90-100 lm/W | 10W | ＞0.3 | 360° | 90x2835SM | White box | No |
R7S-2835-120LEDAC85-265V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC85 - 265V | Aluminum plate | 48.6g | 1100 LM | 90-100 lm/W | 10W | ＞0.3 | 360° | 120x2835SMD | White box | No |
R7S-2835-144LEDAC85-265V R7S SMD LED Light
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Packaging style | Dimmable |
 |  | AC85 - 265V | Aluminum plate | 77g | 1200-1300 LM | 80-90 lm/W | 15W | ＞0.3 | 360° | 144x2835SMD | White box | No |
Feature
1. R7S SMD 2835 LED light adopts ceramic lamp body to gain better heat radiation and achieve environmental protection.

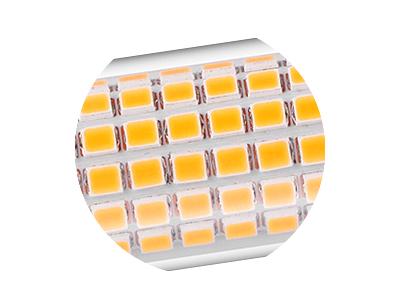

2. The LED light bulb uses 2835 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. R7S SMD 2835 LED light adopts constant current design to achieve overheat, overvoltage, no-load and short circuit protection, as well as to gain advantage such as strobe free and high reliability.
4. The LED light bulb features gentle light, high luminous efficacy, instant lit after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
5. The LED light bulb contains no mercury, generates no EMI radiation, and is environment friendly.

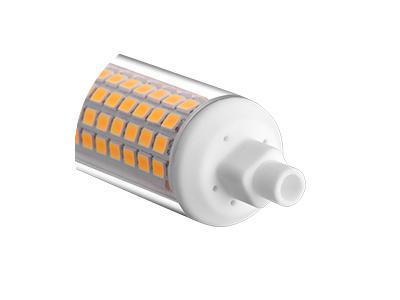

6. R7S SMD 2835 LED light uses ceramics to build its lamp body to achieve novel structure and pleasing appearance.

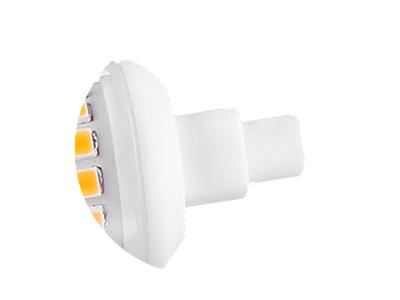

7. R7S SMD 2835 LED light supports the international standard R7S interface, the product therefore is easy to install and becomes an ideal option to replace traditional halogen lamps and filament lamps.
Packaging style
Shunfa is a reliable R7S LED bulb and SMD LED manufacturer, R7S SMD 2835 LED light supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, industrial lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality R7S LED light bulbs with custom service.
