Application

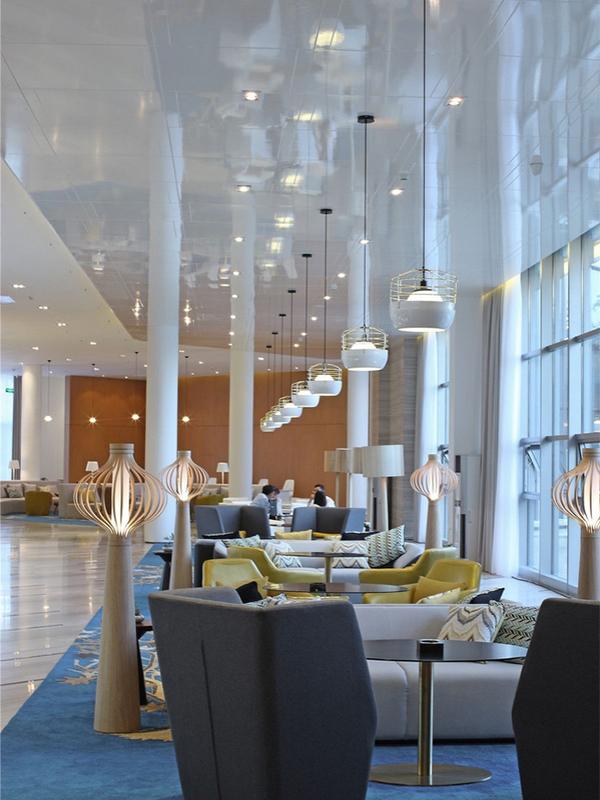

The color temperature of B15-3014-LED light bulb can be chosen from Warm White, Daylight White and Natural White. The LED light product is widely used in lighting sites such as malls, hotels, bars, residential housing.

Specification

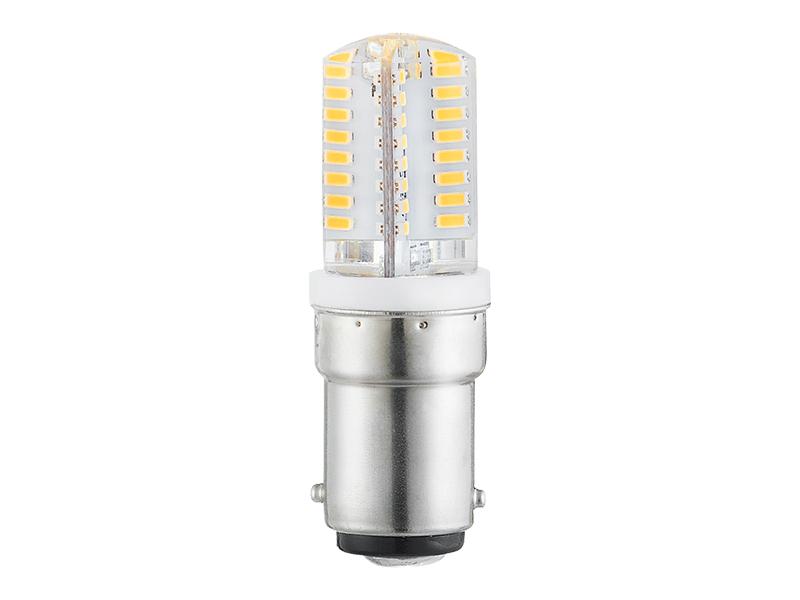

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC / DC10-16V

Silica gel

11.0g

180-200 lm

85-95 lm/W

2.0-2.3W

=1

360°

57x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC / DC10-16V

Silica gel

13.6g

280-300 lm

85-95 lm/W

3.0-3.3W

=1

360°

81x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

10.8g

160-180 lm

70-80 lm/W

2.2-2.4W

＞0.29

360°

58x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

10.8g

150-170 lm

70-80 lm/W

2.3-2.5W

＞0.95

360°

64x3014SMD

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

10.8g

160-180 lm

70-80 lm/W

2.3-2.5W

＞0.32

360°

64x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

13.0g

190-210 lm

75-85 lm/W

3.0-3.3W

＞0.93

360°

72x3014SMD

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

13.5g

250-270 lm

70-80 lm/W

3.2-3.4W

＞0.34

360°

104x3014SMD

No

CRI≥80

Lamp cap specification

Color temperature

Details

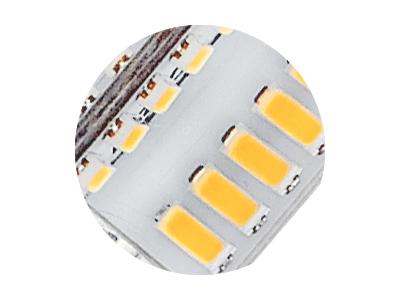

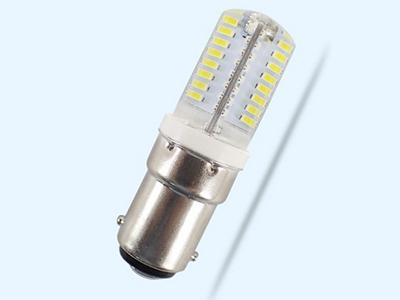

360 degree beam angle
B15-3014-LED light bulb adopts high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness.
The surface temperature of the LED light product is controlled around 80°to achieve better heat radiation and longer service life of the light beam.

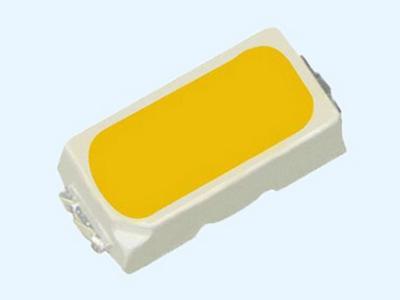

SMD 2835 LED beads
B15-3014-LED light bulb uses SMD 2835 high CRI, high brightness bulbs to receive high luminous efficacy, thin light spectrum and outstanding monochromaticity.
Thank to its color rendering property, the LED light bulb displays lifelike colors and has brilliant capability in color rendition.
The LED light product is environmental friendly and does not contain lead, mercury and other toxic substances.

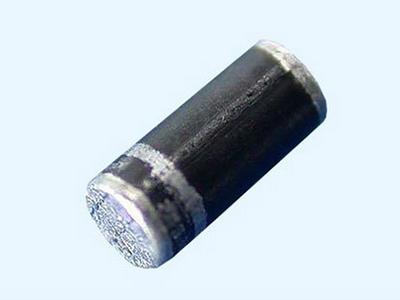

4007 diode
The 4007 diode of B15-3014-LED light bulb features small size, low power, long service life, high brightness, low heat radiation, environmental friendly property as well as high endurance.

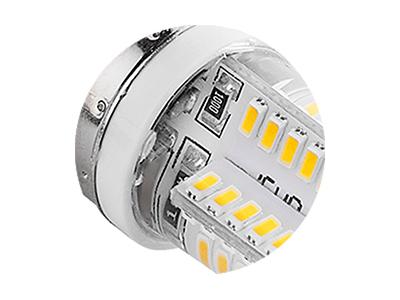

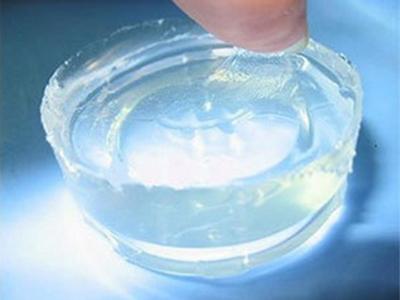

Silica gel
Silica gel adopted by B15-3014-LED light bulb features soft gum, transparent color and great light transmittance. The lamp body parts are clearly visible from outside the bulb.

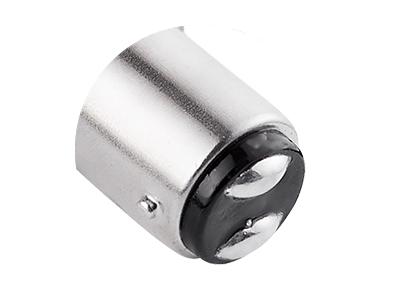

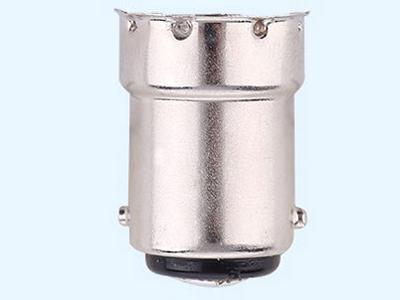

Copper B15 lamp cap
The lamp cap ofB15-3014-LED light bulb uses high quality nickel-plated copper to receive rust endurance of long service life.
PC fireproof material is used to achieve fire safety of the product.
The workmanship of the lamp cap is meticulous and sturdy. The cap is equipped with safe lock to prevent itself from dropping.

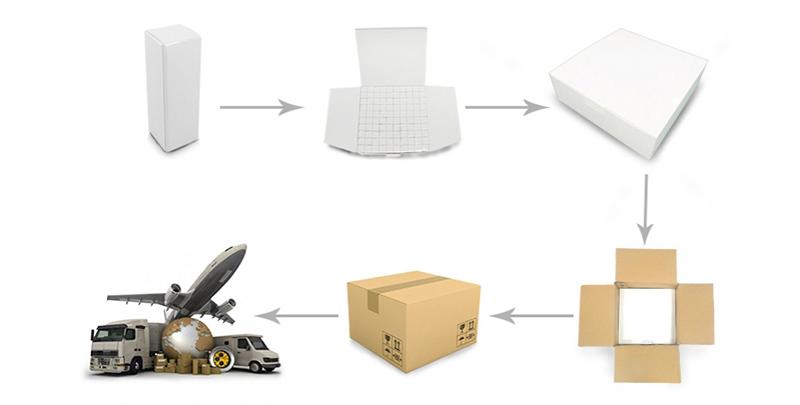

Packaging style
