Application

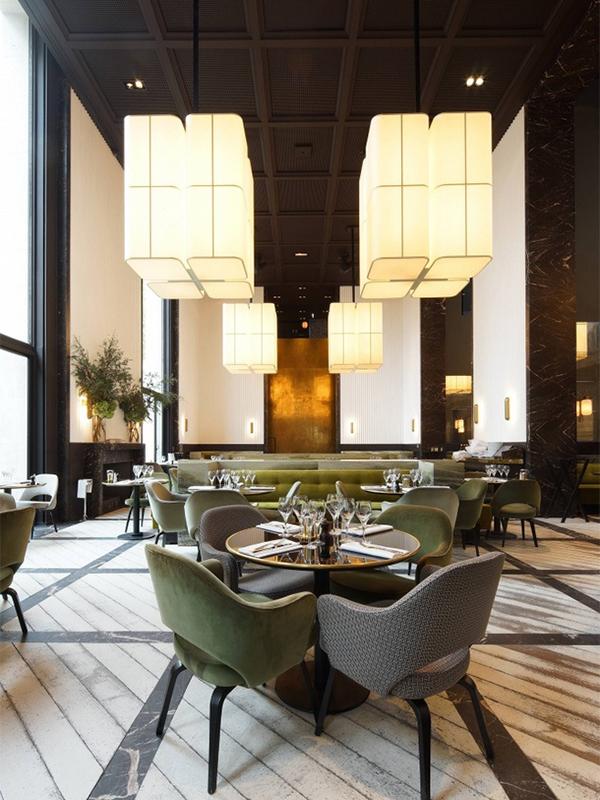

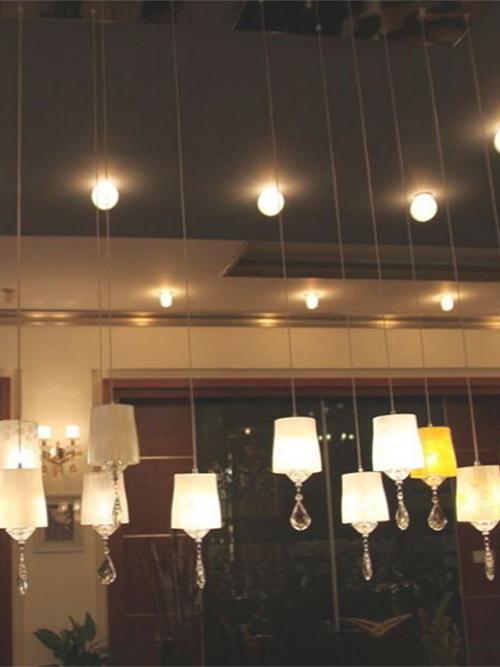

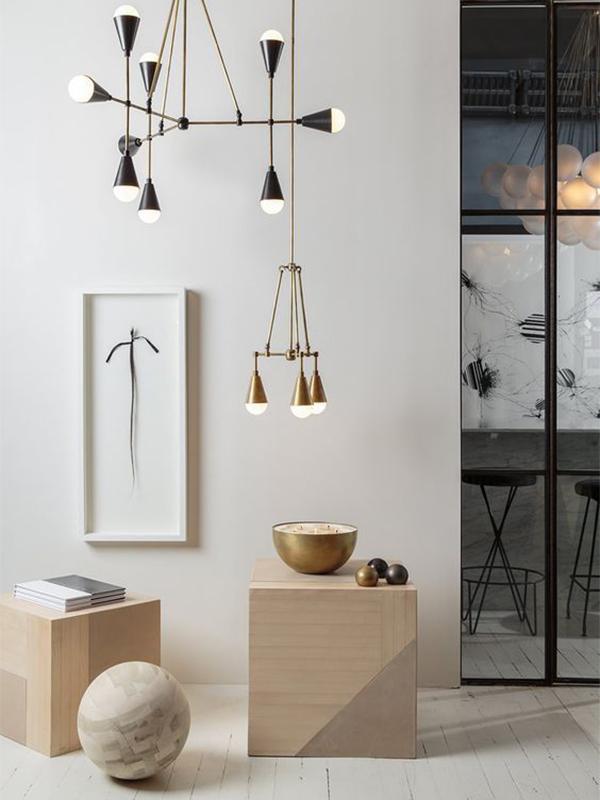

G8-3014-LED features gentle light, EMI free property and environmental friendliness. The LED light product is widely used in malls, hotels, bars, residential housing and other lighting sites.

Specification

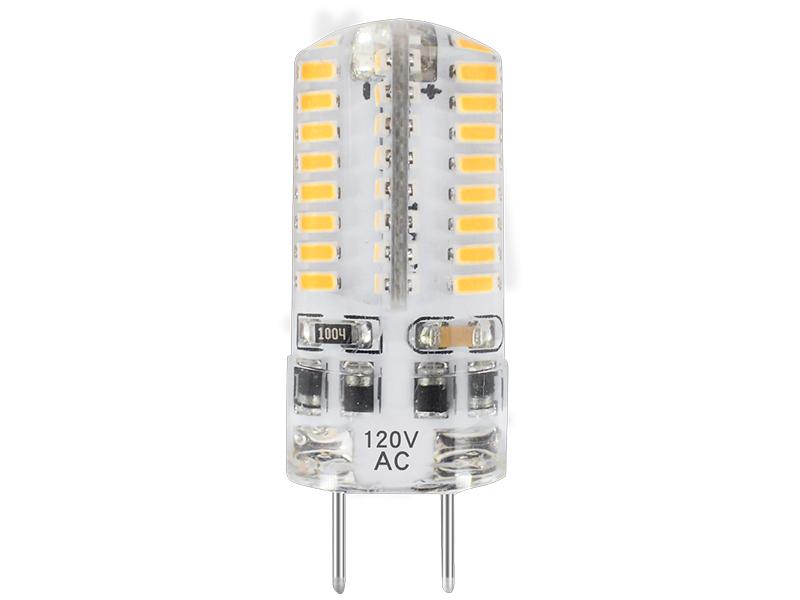

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC120V

Silica gel

7.6g

160-180 lm

70-80 lm/W

2.2-2.4W

＞0.33

360°

64x3014SMD

No

CRI≥80

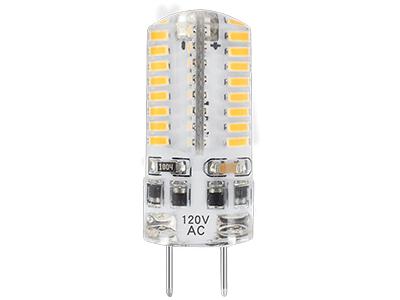

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC127V

Silica gel

9.8g

230-250 lm

70-80 lm/W

3.0-3.3W

0.9±10%

360°

72x3014SMD

Yes

CRI≥80

Feature

1. G8-3014-LED light bulb has great heat radiation and high insulation.

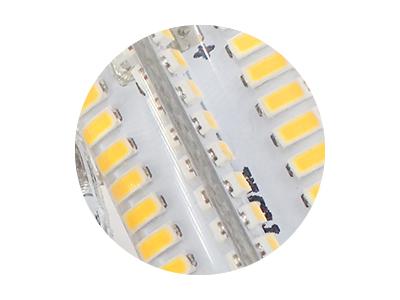

2. The LED light bulb uses 3014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. G8-3014-LED light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, emits no electromagnetic interference radiation, and is environmental friendly.

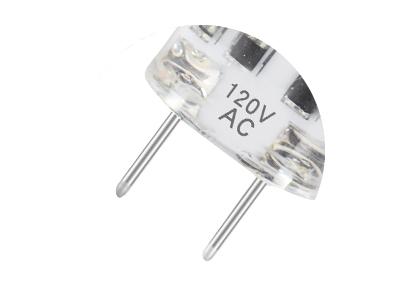

5. G8-3014-LED light bulb applies high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness.

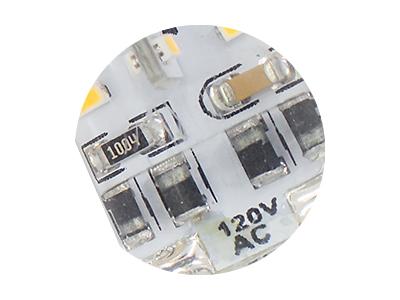

6. The LED light bulb adopts linear constant current intelligent IC to effectively protect the LED and promote stability.
7. The LED light bulb supports variable color temperature.
8. G8-3014-LED light bulb has high luminous power and outstanding color rendering property, and suffices to replace the traditional 20W-30W halogen lamps and filament lamps.

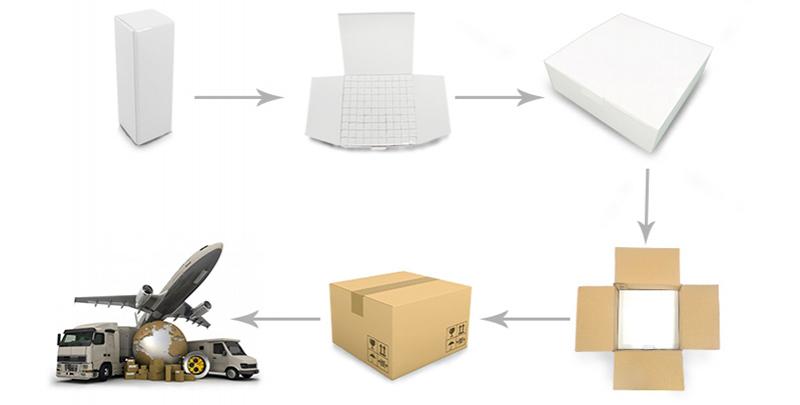

Packaging style

Shunfa is a reliable G8 LED bulb and SMD LED manufacturer, G8 3014 SMD LED bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for residential lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G8 LED light bulbs with custom service.
