Application

Silicone sealed E14-3014-LED corn light bulb adopts high transparency silica gel sealing to achieve a 360 degrees illumination without blind angles as well as high luminous power and enhanced brightness. Application sites of the LED light product include malls, hotels, bars, residential housing and other situations requiring illumination.

Specification

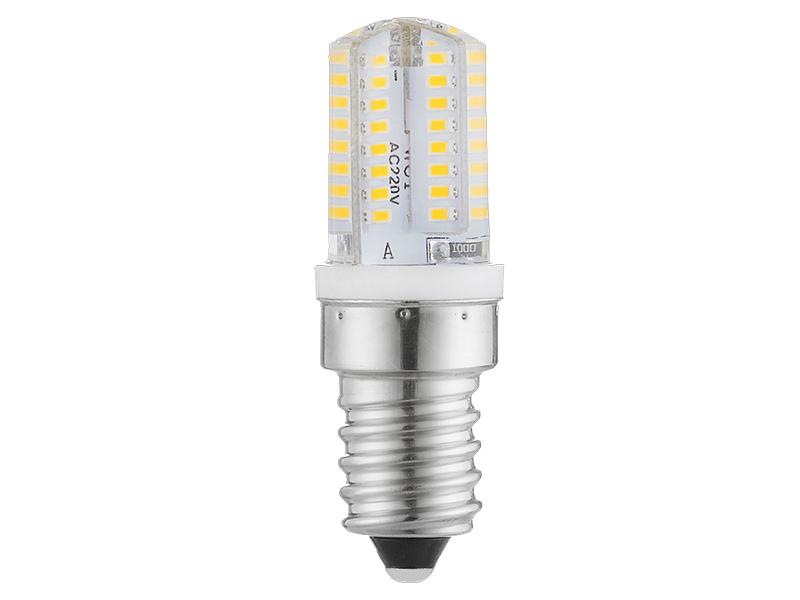

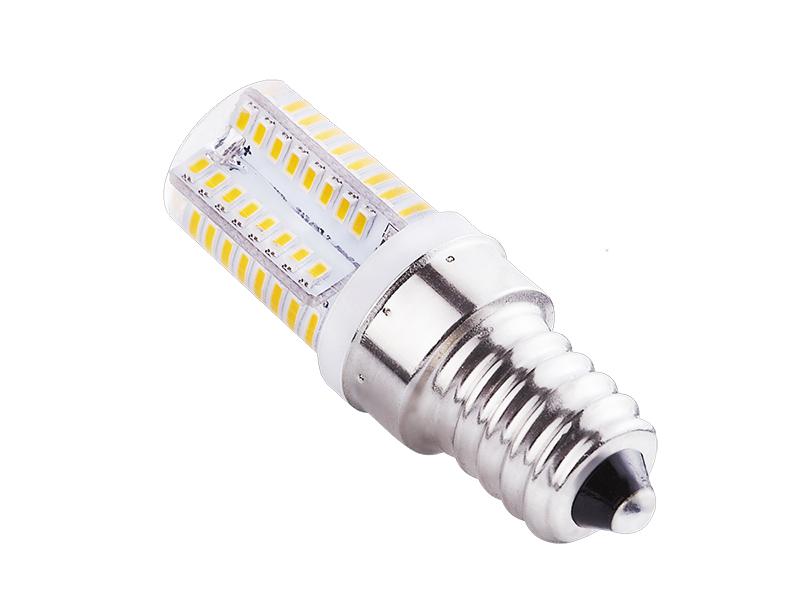

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC / DC10-16V

Silica gel

9.6g

160-180 lm

70-80 lm/W

2.0-2.3W

0.7-1.0

360°

57x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

9.8g

160-180 lm

70-80 lm/W

2.2-2.4W

＞0.32

360°

64x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

9.8g

150-170 lm

70-80 lm/W

2.7-2.8W

＞0.95

360°

64x3014SMD

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

9.8g

160-180 lm

70-80 lm/W

2.3-2.5W

＞0.32

360°

64x3014SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

11.4G

190-210 lm

75-85 lm/W

3.0-3.3W

＞0.93

360°

72x3014SMD

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

12g

250-270 lm

70-80 lm/W

3.2-3.4W

＞0.46

360°

64x3014SMD

No

CRI≥80

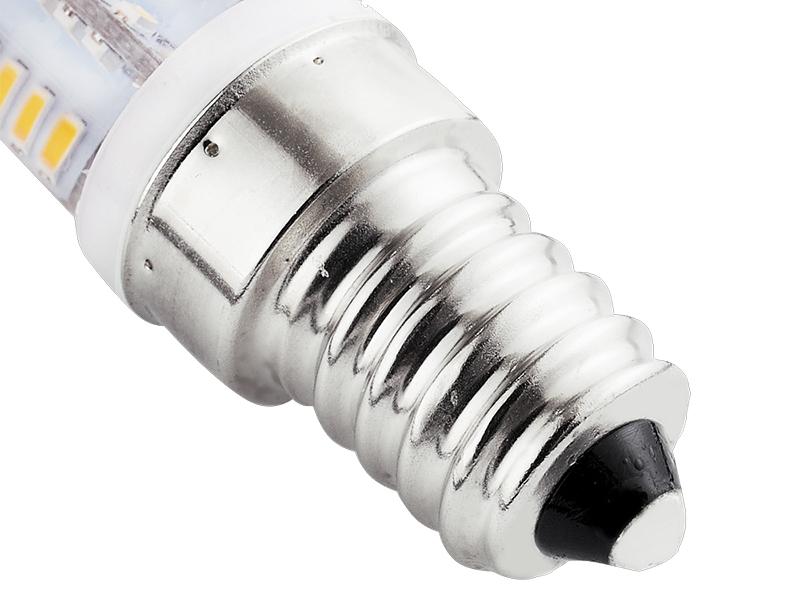

Lamp cap specification

Color temperature

Feature

1. Silicone sealed E14-3014-LED corn light bulb features fine heat radiation and high insulation.
2. The LED light bulb uses 3014 SMD LED beads as the light source, to achieve low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. Silicone sealed E14-3014-LED corn light bulb features gentle light, high luminous efficacy, instant lit after turning on, and bears no strobe or light spots, ensuring that the product protects customers' eyes effectively.
4. The LED light bulb contains no mercury, emits no electromagnetic interference radiation, and is environmental friendly.
5. Silicone sealed E14-3014-LED corn light bulb applies high transparency silica gel to seal its lamp body, and therefore gains the benefit of a 360 degrees illumination without blind angles as well as high luminous power and enhanced brightness.
6. The LED light bulb adopts linear constant current intelligent IC to effectively protect the LED and promote stability.
7. The LED light product has a range of color temperature for customers to choose from.
8. Silicone sealed E14-3014-LED corn light bulb has high luminous power and outstanding CRI, and suffices to replace the traditional halogen lamps and filament lamps.

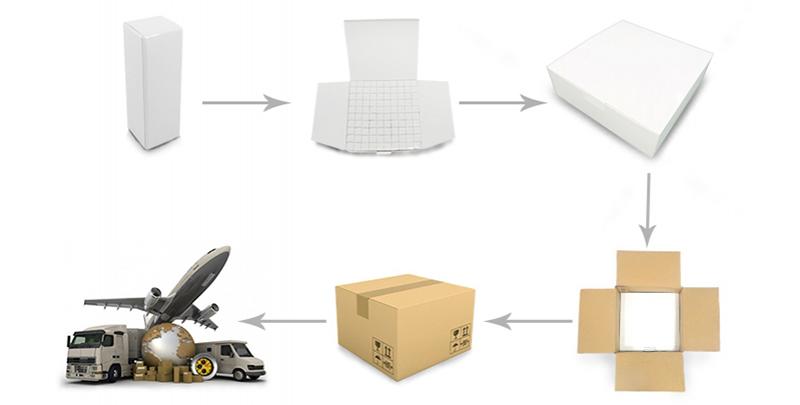

Packaging style

Shunfa is a reliable E14 LED bulb and SMD LED manufacturer, E14 3014 SMD LED bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, industrial lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality E14 LED light bulbs with custom service.
