Application

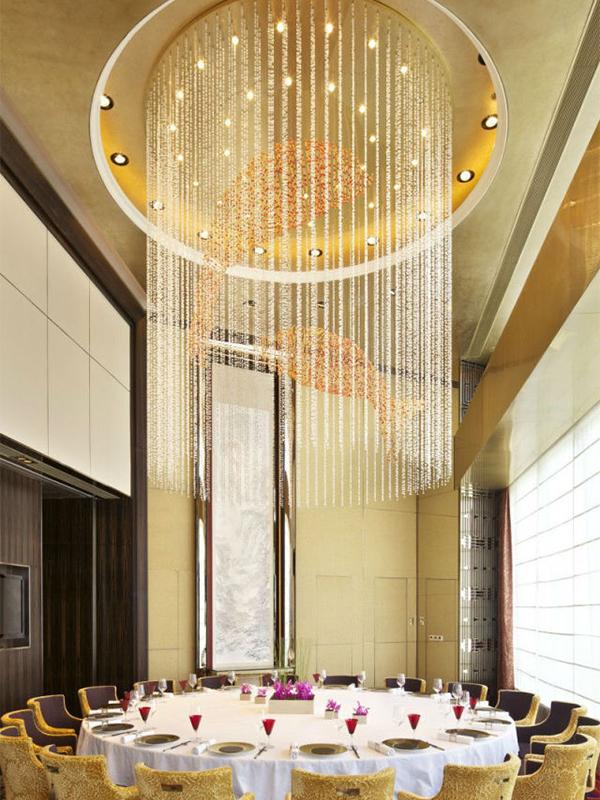

The color temperature of G4-4014-LED light bulb ranges from Warm White, Daylight White or Natural White. The LED light product is applicable in indoor lighting sites such as malls, hotels, bars and residential housing.
Specification

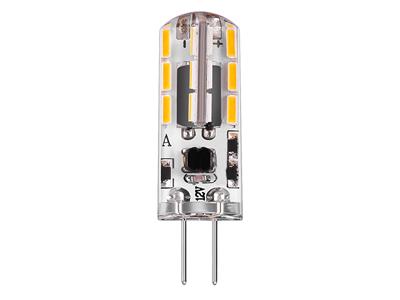

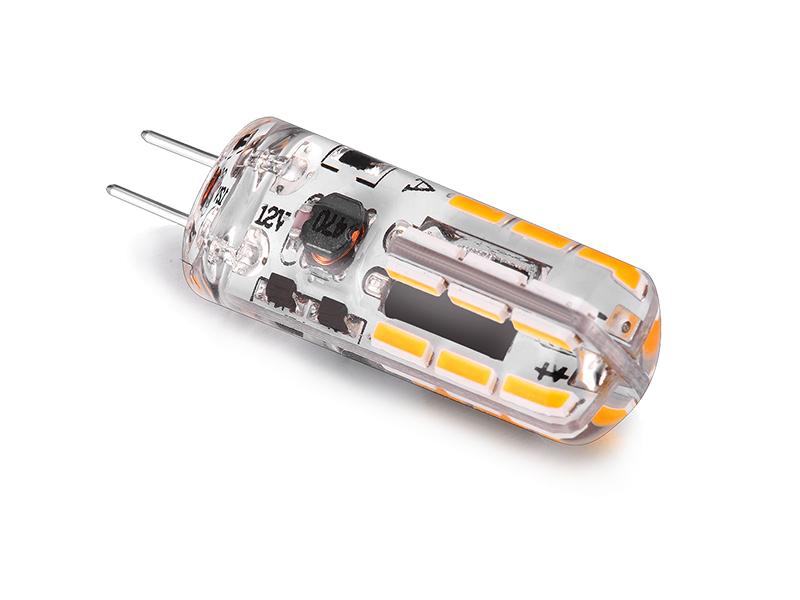

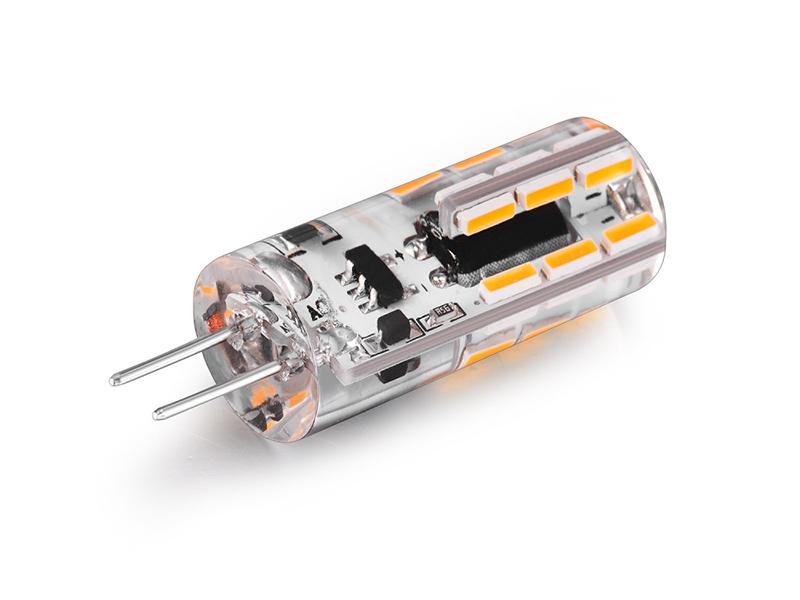

G4-4014-24LED AC/DC12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC/DC 12V | Silica gel | 3.3g | 140-150 lm | 92-100 M/W | 1.65W | =1 | 360° | 24*4014SMD | No | electrolytic capacitor |
G4-4014-24LED AC12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC12V | Silica gel | 4.6 | 110-120 lm | 95-100 lm/W | 1.2W | =0.69 | 360° | 24LED*4014 | No | CRI≥80 |
G4-4014-48LED AC12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC 12V | Silica gel | 4.6g | 185-200 lm | 93-100 lm/W | 2W | | 360° | 48LED*4014 | No | CRI≥80 |
G4-4014-42LED AC12V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC12V | Ceramics | 6.8g | 342 lm | 130 lm/W | 2.6W | =1 | 360° | 42LED*4014 | No | CRI≥80 |
G4-4014-46LED AC120/220V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC120 / 220V | Silica gel | 14.7G | 487lm | 111 lm/W | 4.5W | =0.45 | 360° | 46*4014SMD | No | CRI≥80 |
G4-4014-46LED AC120V G4 SMD LED Light Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220V | Silica gel | 14.8G | 417 lm | 119 lm/W | 3.5W | =0.88 | 360° | 46*4014SMD | Yes | CRI≥80 |

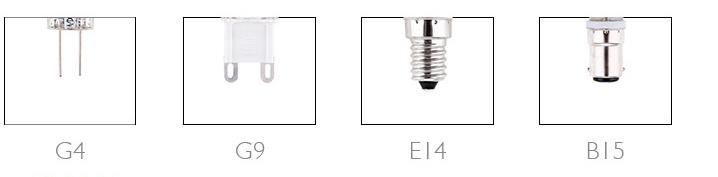

Lamp cap specification
Color temperature
-
Warm White (2800~3000K)
-
Natural White (4000~4500K)
-
Daylight White (6000~6500K)
Feature
1. G4-4014-LED light bulb uses 4014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
2. The LED light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots to protect customers' eyes effectively.
3. The LED light has high luminous power and outstanding CRI, and therefore suffices to replace the traditional halogen lamps and filament lamps.
4. G4-4014-LED light bulb emits no heat radiation and contains no mercury, and thus exercises environmental friendliness.
5. The LED light bulb adopts high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness
6. The surface temperature of the LED light product is controlled under 80°. It adopts JCET's Schottky diode as rectifier bridge, eliminating the need for distinguishing the positive and negative electrodes.
7. All components of the G4-4014 LED are surface mounted. Such design enables high automation during manufacturing and increases production efficiency.
8. The lamp base of G4-4014-LED light uses the international standard G4 in-line pins (0.7*12mm, 4mm interval between pins) simplify installation. The LED light can be used in all kinds of quartz lamps to replace traditional halogen lamps.
9. Matching jig is adopted during the manufacturing of the LED light bulb to avoid inclined pins. Sufficient gel is irrigated to ensure no PCB board is bare and secure waterproof property of the product.

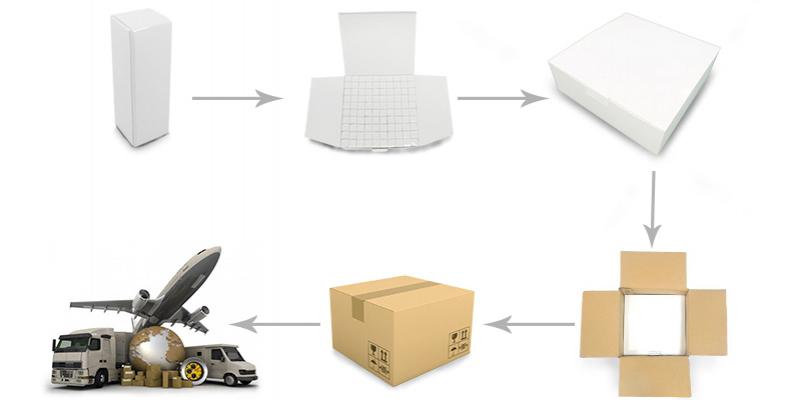

Packaging style
Shunfa is a reliable G4 LED bulb and SMD LED manufacturer, G4 bi-pin 4014 SMD LED light bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for residential lighting, commercial lighting, industrial lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G4 LED light bulbs with custom service.
