Application

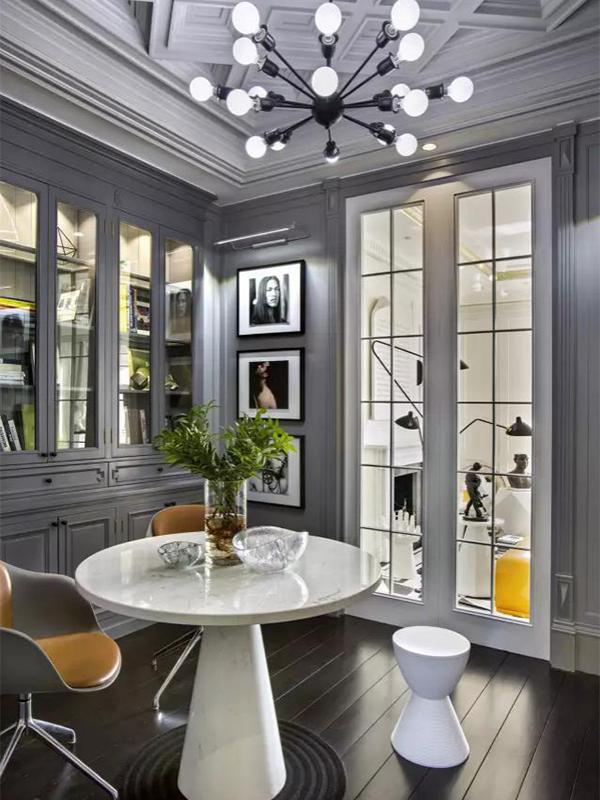

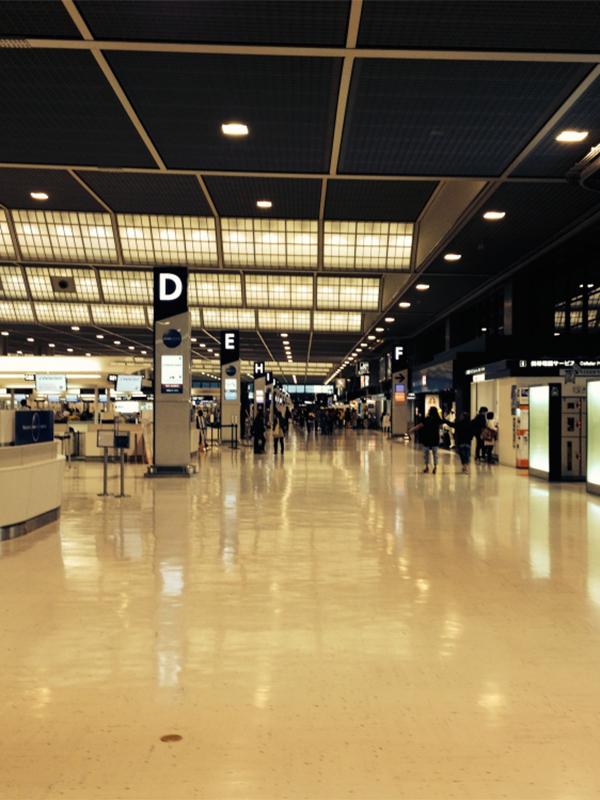

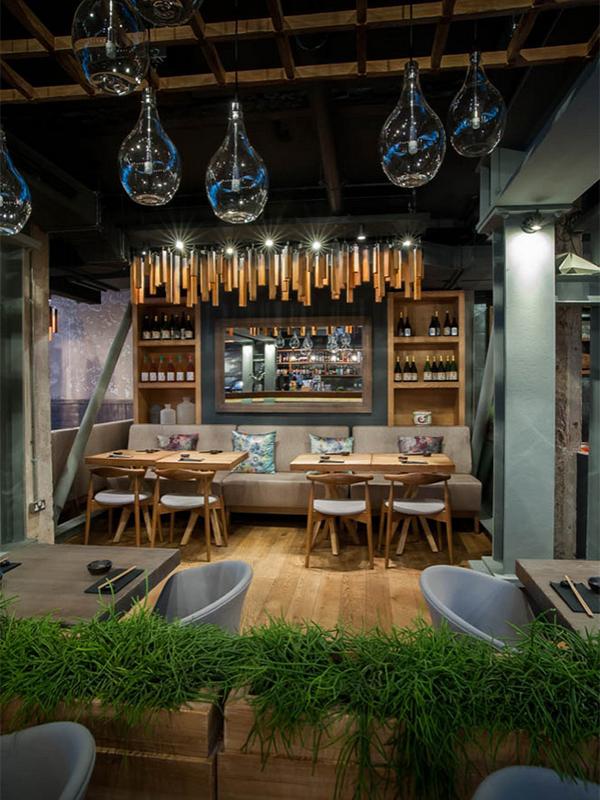

Silicone sealed E12-3014-LED corn light bulb has a range of color temperature to choose from. The LED light product can be used in malls, hotels, bars, residential housing and other situations requiring illumination.
Specification
E12-3014B-57LED AC/DC 12V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica gel | 9.6g | 180-220 lm | 90-100 lm/W | 2.0-2.3W | 0.7-1.0 | 360° | 57x3014SMD | No | CRI≥80 |
E12-3014B-81LED AC/DC 12V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica gel | 11.8g | 280-300 lm | 85-95 lm/W | 3.2-3.5 W | 0.7-1.0 | 360° | 81x3014SMD | No | CRI≥80 |
E12-3014B-58LED AC110/220V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.6g | 160-180 lm | 70-80 lm/W | 2.2-2.4W | ＞0.29 | 360° | 58x3014SMD | No | CRI≥80 |
E12-3014BD-64LED AC110/220V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.8g | 150-170 lm | 70-80 lm/W | 2.7-2.8W | ＞0.95 | 360° | 64x3014SMD | Yes | CRI≥80 |
E12-3014B-64LED AC110/220V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.8g | 160-180 lm | 70-80 lm/W | 2.3-2.5W | ＞0.32 | 360° | 64x3014SMD | No | CRI≥80 |
E12-3014B-72LED AC110/220V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.0g | 190-210 lm | 75-85 lm/W | 3.0-3.3W | ＞0.93 | 360° | 72x3014SMD | Yes | CRI≥80 |
E12-3014B-104LED AC110/220V E12 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.0g | 250-270 lm | 70-80 lm/W | 3.2-3.4W | ＞0.46 | 360° | 104x3014SMD | No | CRI≥80 |
Feature
1. E12-3014-LED corn light bulb features fine heat radiation and high insulation.
2. The LED light bulb uses 3014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. E12-3014-LED corn light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, generates no EMI radiation, and is environmental friendly.
5. The LED light has high luminous power and outstanding color rendering property, and suffices to replace the traditional 30W-50W halogen lamps and filament lamps.

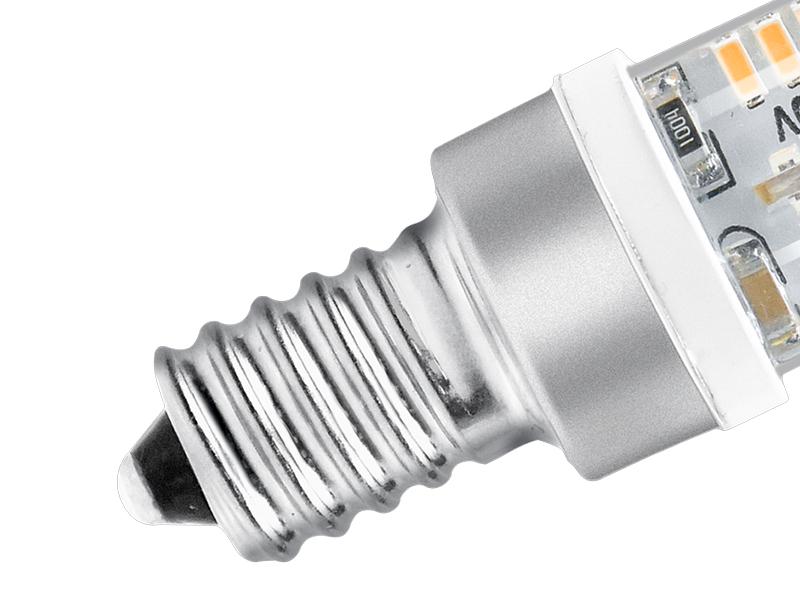

6. The lamp cap of E12-3014-LED corn light bulb is of E12 model. The LED light product is thus easy to install and becomes an ideal option to replace traditional halogen lamps and filament lamps.

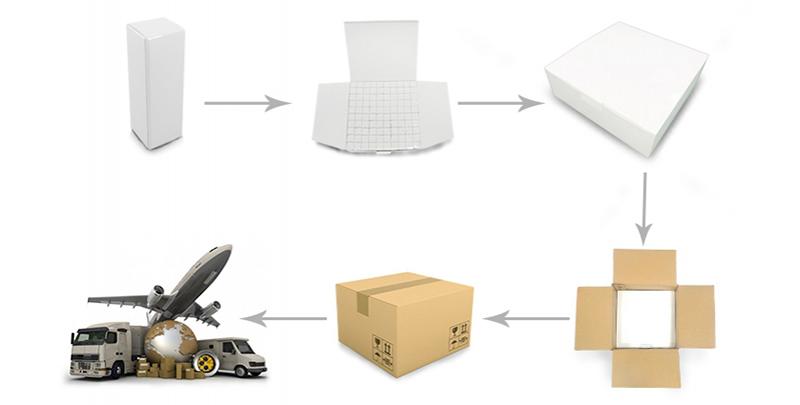

Packaging style
Shunfa is a reliable E12 LED bulb and SMD LED manufacturer, E12 3014 SMD LED corn bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for residential lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality E12 LED light bulbs with custom service.
