Application

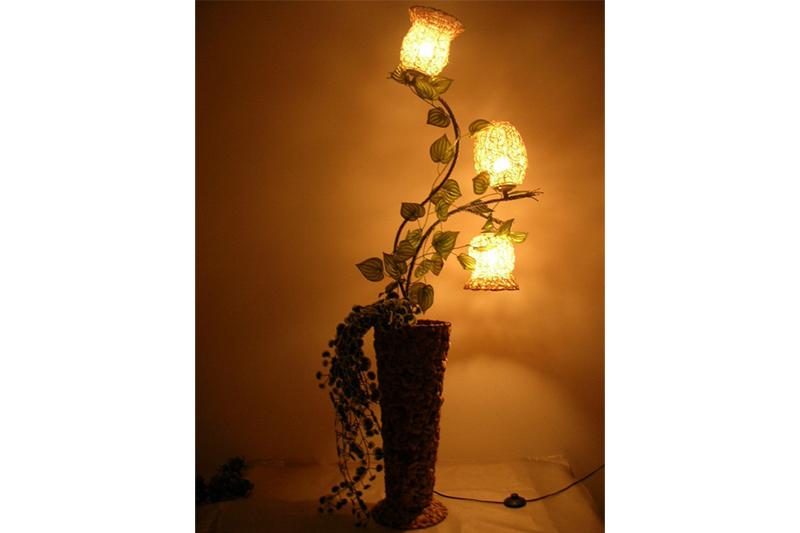

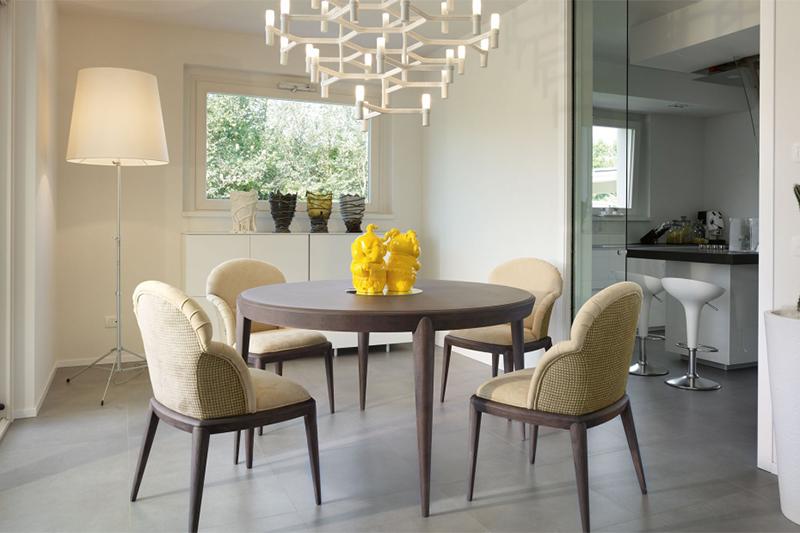

The color temperature of G9 SMD 2835 corn LED bulb ranges from Warm White, Daylight White and Natural White. The LED light product is widely used in lighting sites such as malls, hotels, bars and residential housing.
Specification

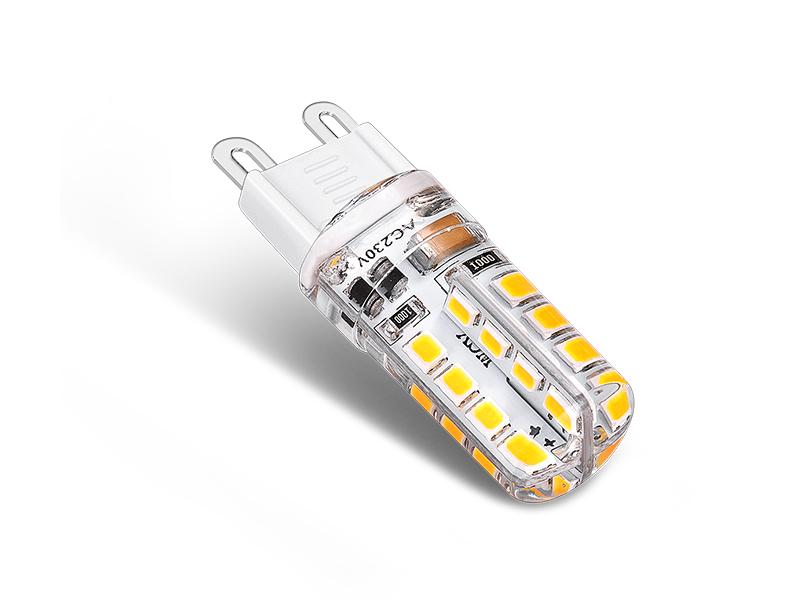

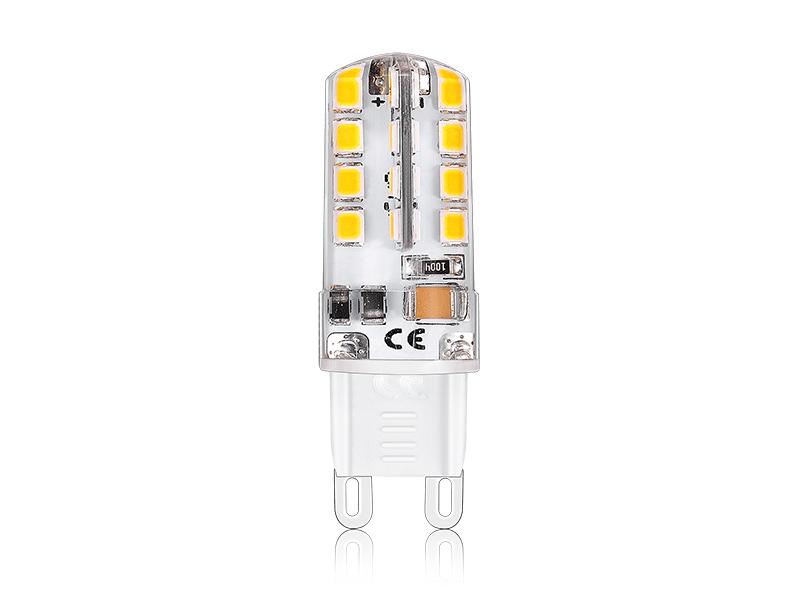

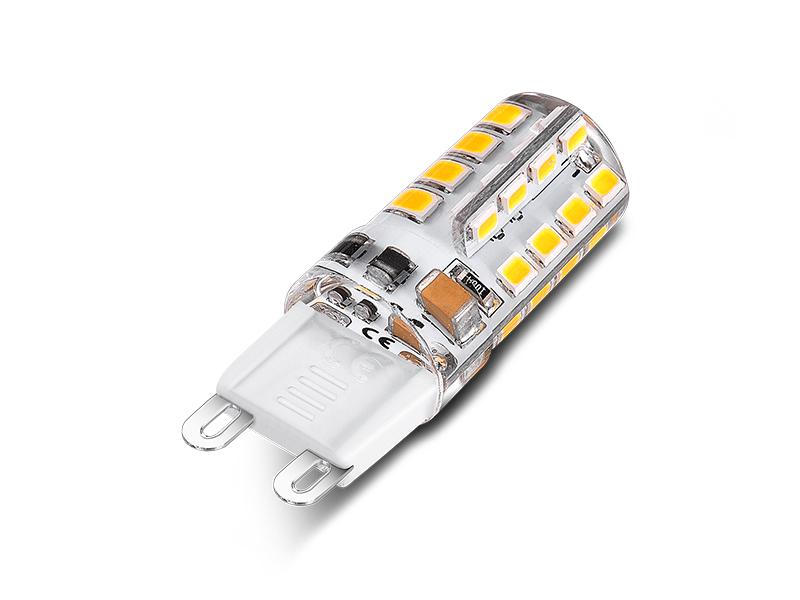

G9-2835-14LED AC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220 - 240V | Silica gel | 6g | 205-225 lm | 105-115 lm/W | 2.0-2.2W | ＞0.93 | 360° | 14x2835SMD | Yes | plastic fittings |
G9-2835MC-14LED AC110V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Remark |
 |  | AC110 - 130V | Silica gel+aluminum plate | 4.8g | 205-225 lm | 105-115 lm/W | 2.0-2.2W | ＞0.93 | 360° | 14x2835SMD | plastic fittings |
G9-2835MC-14LED AC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Remark |
 |  | AC220 - 240V | Silica gel+aluminum plate | 4.8g | 205-225 lm | 105-115 lm/W | 2.0-2.2W | ＞0.93 | 360° | 14x2835SMD | plastic fittings |
G9-2835MC-28LED AC110V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Remark |
 |  | AC110 - 130V | Silica gel+aluminum plate | 6.8g | 380-400 lm | 100-110 lm/W | 3.4-3.6W | ＞0.93 | 360° | 28x2835SMD | plastic fittings |
G9-2835MC-28LED AC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Remark |
 |  | AC220 - 240V | Silica gel+aluminum plate | 6.8g | 380-400 lm | 100-110 lm/W | 3.8-4.0W | ＞0.93 | 360° | 28x2835SMD | plastic fittings |
G9-2835BD-32LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.8g | 160-180 lm | 70-80 lm/W | 2.4-2.6W | ＞0.93 | 360° | 32x2835SMD | Yes | Ceramic pins |
G9-2835B-32LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.6g | 170-190 lm | 75-85 lm/W | 2.2-2.4W | ＞0.33 | 360° | 32x2835SMD | No | Ceramic pins |
G9-2835B-40LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.6g | 200-220 lm | 80-90 lm/W | 2.5-2.7W | ＞0.40 | 360° | 40x2835SMD | No | ceramic pins |
G9-2835B-48LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 11.7g | 230-250 lm | 80-90 lm/W | 3.0-3.3W | ＞0.40 | 360° | 48x2835SMD | No | Ceramic pins |
G9-2835BD-64LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.4g | 240-260 lm | 70-80 lm/W | 3.4-3.6W | ＞0.95 | 360° | 64x2835SMD | Yes | Ceramic pins |
G9-2835B-64LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.5g | 250-270 lm | 70-80 lm/W | 3.2-3.4W | ＞0.31 | 360° | 64x2835SMD | No | ceramic pins |
G9-2835B-72LED AC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 13.0g | 300-320lm | 70-80 lm/W | 4.3-4.5W | ＞0.93 | 360° | 72x2835SMD | Yes | Ceramic pins |

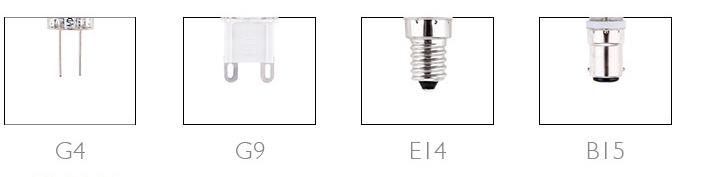

Lamp cap specification
Color temperature
-
Warm White (2800~3000K)
-
Natural White (4000~4500K)
-
Daylight White (6000~6500K)
Feature
1. G9 SMD 2835 corn LED bulb features fine heat radiation and high insulation.
2. The LED light bulb uses 2835 SMD LED beads as the light source to achieve low energy consumption, low luminous decay,small heat emission and a long service life of 30 to 50 thousand hours.
3. G9 SMD 2835 corn LED bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, emits no electromagnetic interference radiation, and practices environmental friendliness.
5. G9 SMD 2835 corn LED bulb applies high transparency silica gel sealing to the lamp body to achieve novel structure and pleasing appearance.
6. The LED light has high luminous power and outstanding color rendering property, and suffices to replace traditional halogen lamps and filament lamps.
7. The lamp cap of G9 SMD 2835 corn LED bulb is of G9 model. The LED light product is thus easy to install and becomes a ideal option to replace traditional halogen lamps and filament lamps.

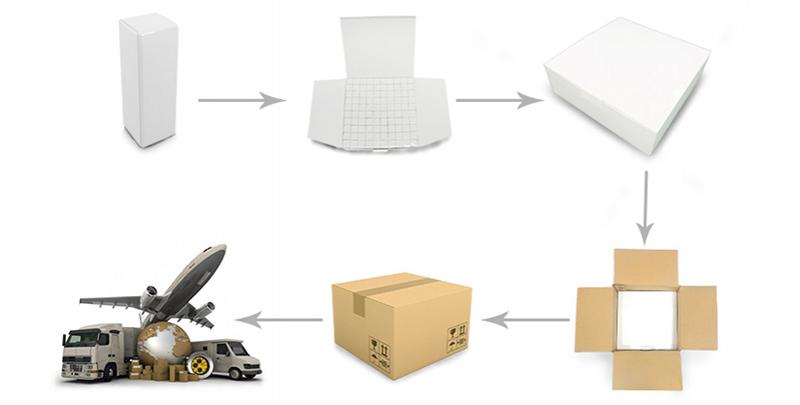

Packaging style
Shunfa is a reliable G9 LED bulb and SMD LED manufacturer, G9 SMD 2835 corn LED bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G9 LED light bulbs with custom service.
