Application

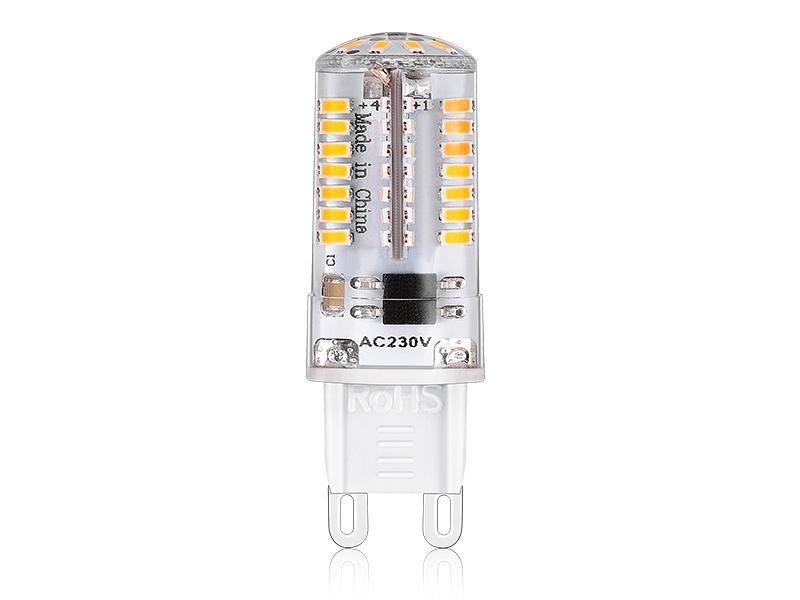

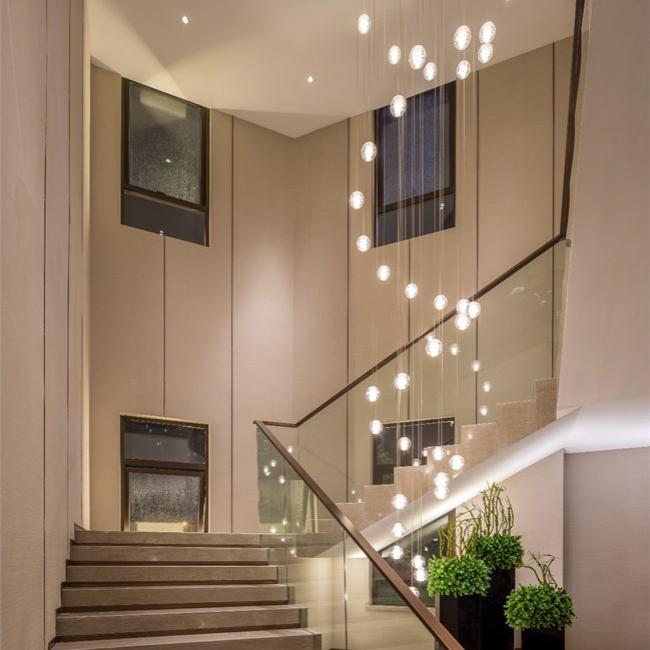

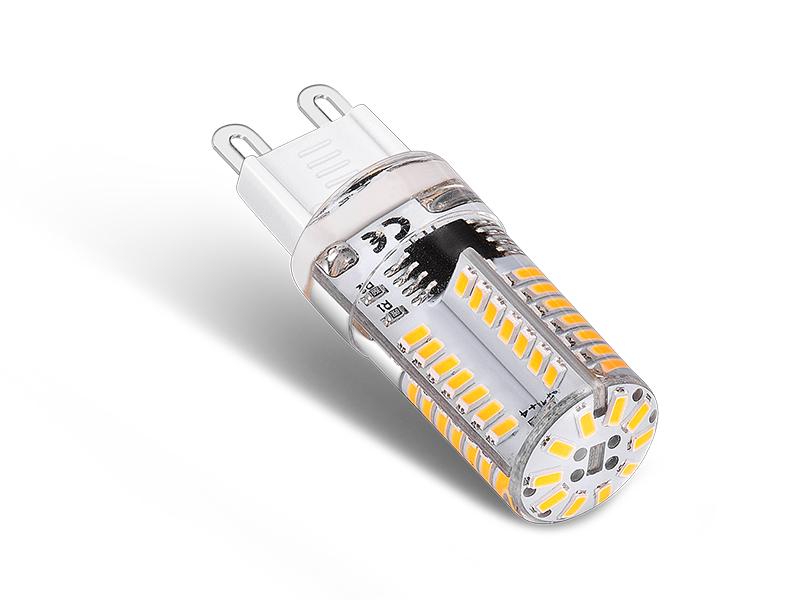

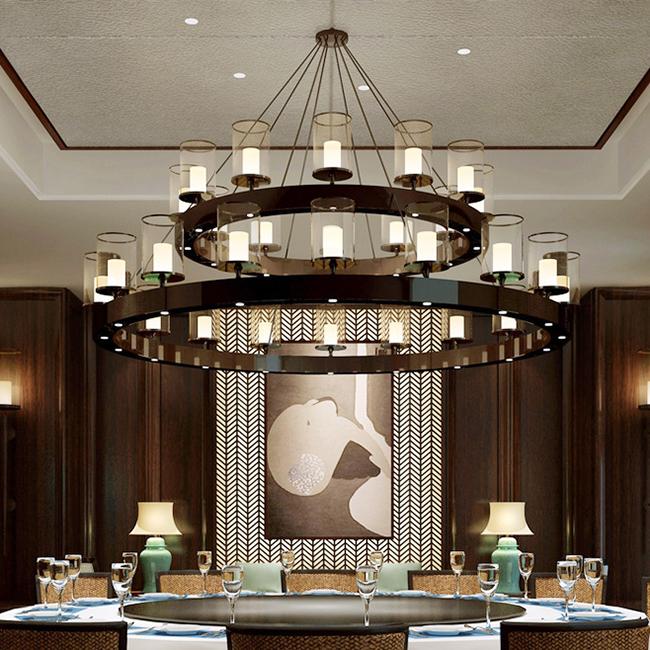

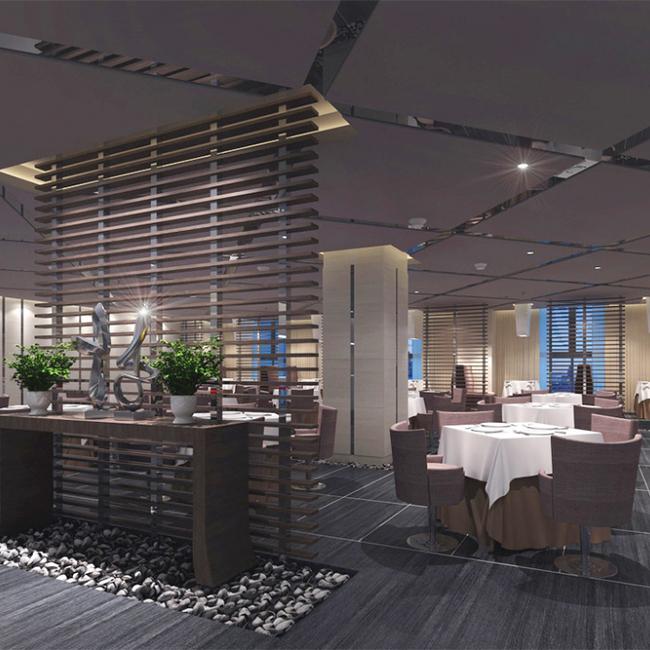

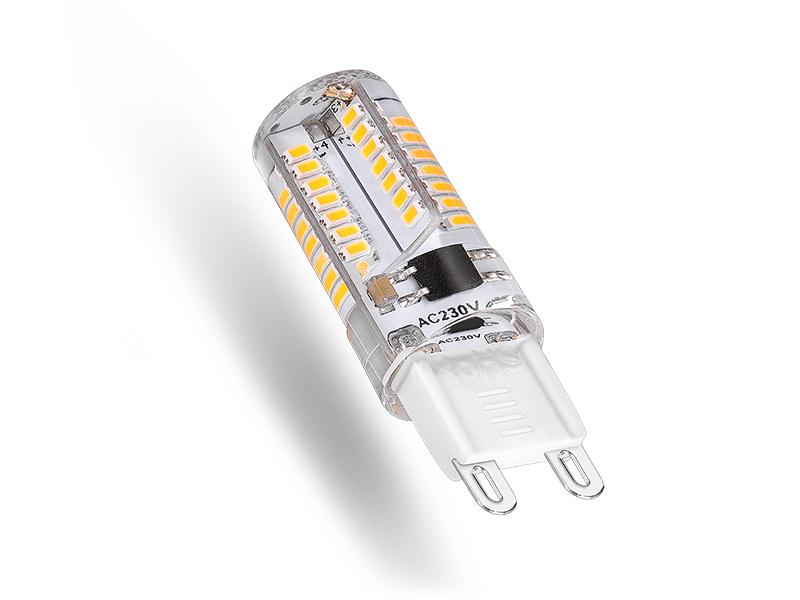

Silicone sealed G9 SMD 3014 corn LED bulb features high luminous efficacy, and has a color temperature that ranges from Warm White, Daylight White and Natural White. The LED light product is applicable in lighting sites such as malls, hotels, bars and residential housing.
Specification
G9-3014B-57LED AC/DC 12V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC / DC10-16V | Silica gel | 9.4g | 180-200 lm | 80-90 lm/W | 2.0-2.3W | =1.0 | 360° | 57x3014SMD | No | Ceramic pin |
G9-3014B-64LED AC 85-265V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC85 - 265V | Silica gel | 11.4g | 210-230 lm | 75-85 lm/W | 2.6-2.8W | ＞0.38 | 360° | 64x3014SMD | No | Ceramic pin |
G9-3014B-112LED AC 85-265V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC85 - 265V | Silica gel | 13.2g | 250-270 lm | 80-90 lm/W | 3.0-3.2W | ＞0.38 | 360° | 112x3014SMD | No | Ceramic pin |
G9-3014B-58LED AC100/220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.5g | 170-190 lm | 75-85 lm/W | 2.2-2.4W | ＞0.29 | 360° | 58x3014SMD | No | Ceramic pin |
G9-3014BD-64LED AC110/220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.2g | 170-190 lm | 70-80 lm/W | 2.7-2.8W | ＞0.95 | 360° | 64x3014SMD | Yes | Ceramic pin |
G9-3014B-64LED AC100/220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 9.4g | 200-220 lm | 80-85 lm/W | 2.4-2.6W | ＞0.32 | 360° | 64x3014SMD | No | Ceramic pin |
G9-3014-66LED AC220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 8.5g | 200-220 lm | 80-90 lm/W | 2.6-2.8W | ＞0.95 | 360° | 66x3014SMD | Yes | Ceramic pin |
G9-3014B-72LED AC110/220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.6g | 210-230 lm | 75-85 lm/W | 3.0-3.3W | ＞0.93 | 360° | 72x3014SMD | Yes | Ceramic pin |
G9-3014B-104LED AC110/220V G9 SMD Corn LED Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 12.4g | 250-270 lm | 70-80 lm/W | 3.2-3.4W | ＞0.51 | 360° | 104x3014SMD | No | Ceramic pin |

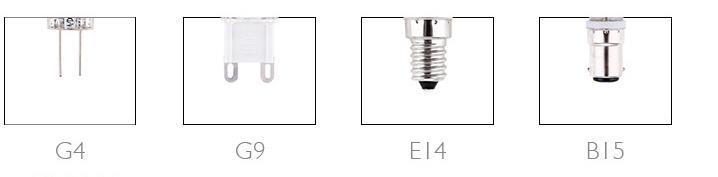

Lamp cap specification
Color temperature
-
Warm White (2800~3000K)
-
Natural White (4000~4500K)
-
Daylight White (6000~6500K)
Feature
1. Silicone sealed G9 SMD 3014 corn LED bulb features fine heat radiation and high insulation.
2. The LED light bulb uses 3014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. Silicone sealed G9 SMD 3014 corn LED bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, generates no EMI radiation, and is environment friendly.
5. Silicone sealed G9 SMD 3014 corn LED bulb applies high transparency silica gel sealing to the lamp body to achieve novel structure and pleasing appearance.
6. The LED light has high luminous power and outstanding color rendering property, and suffices to replace the traditional halogen lamps and filament lamps.
7. The lamp cap of Silicone sealed G9 SMD 3014 corn LED bulb is of G9 model. The LED light product is thus easy to install and becomes an ideal option to replace traditional halogen lamps and filament lamps.

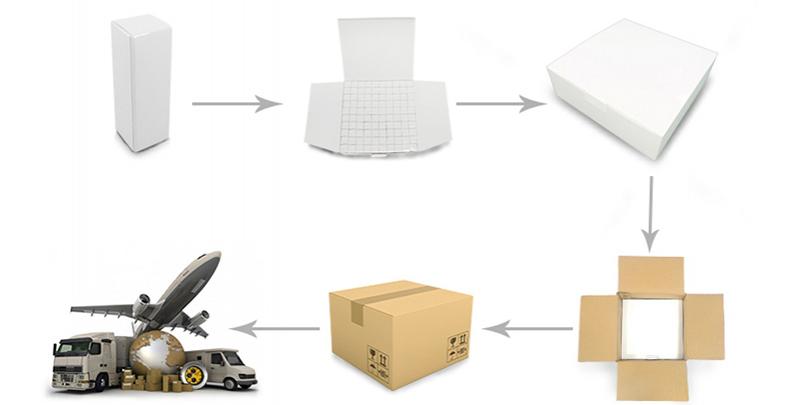

Packaging style
Shunfa is a reliable G9 LED bulb and SMD LED manufacturer, silicone sealed G9 SMD 3014 corn LED bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, industrial lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G9 LED light bulbs with custom service.
