Application

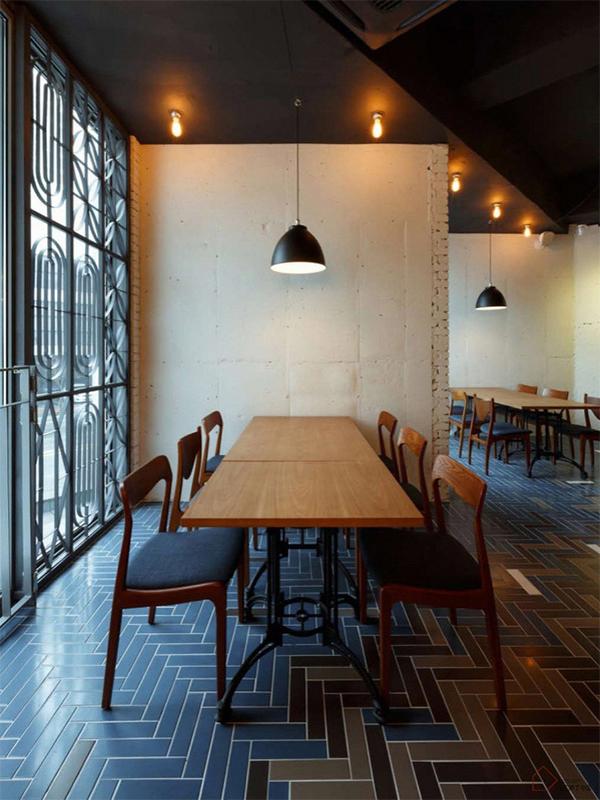

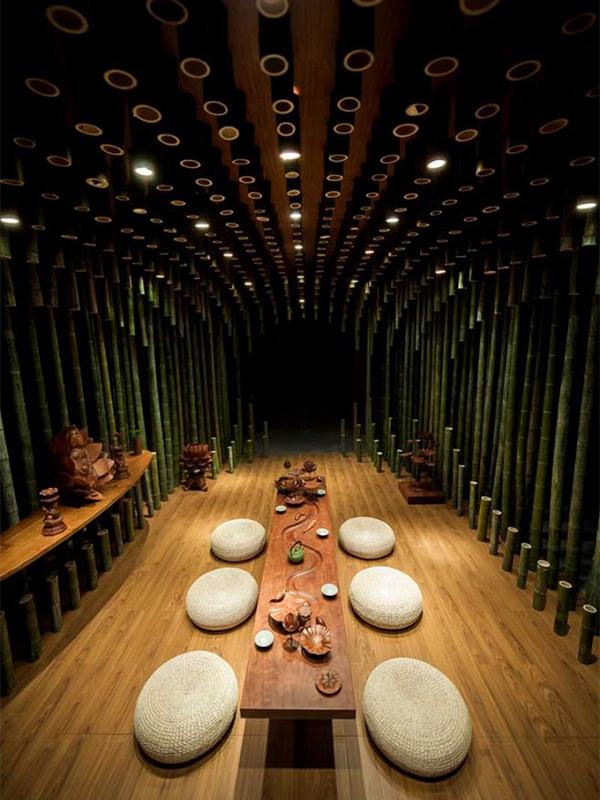

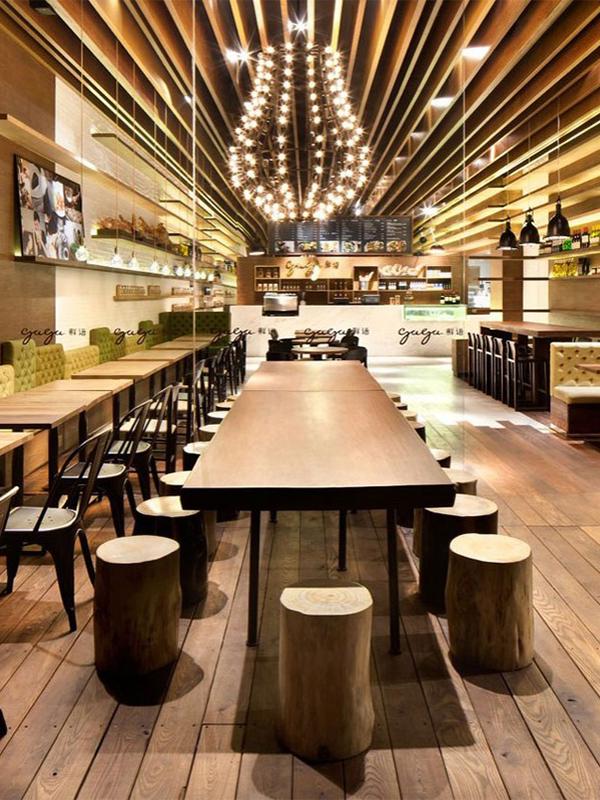

G4-COB-LED light bulb adopts Sapphire's COB to achieve long energy consumption and long service life. Application sites of the LED light product include malls, hotels, bars, residential housing and other situations requiring indoor lighting.

Specification

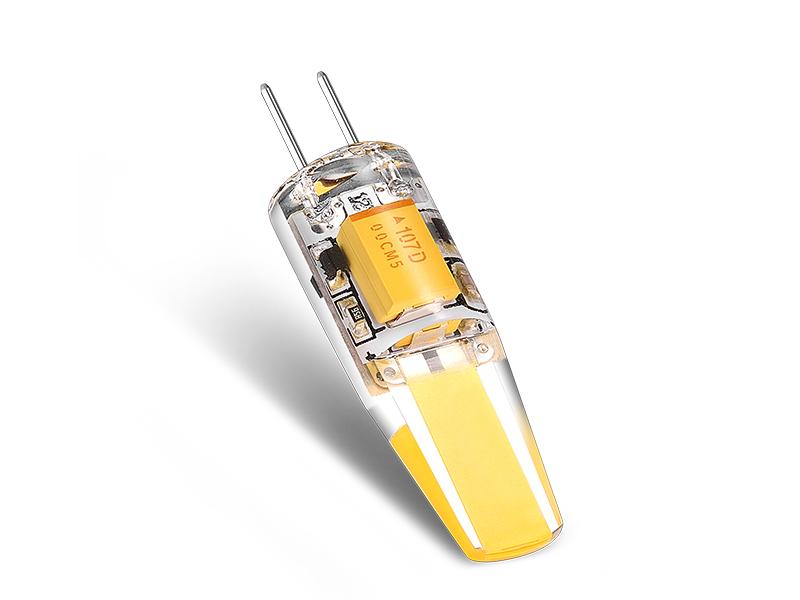

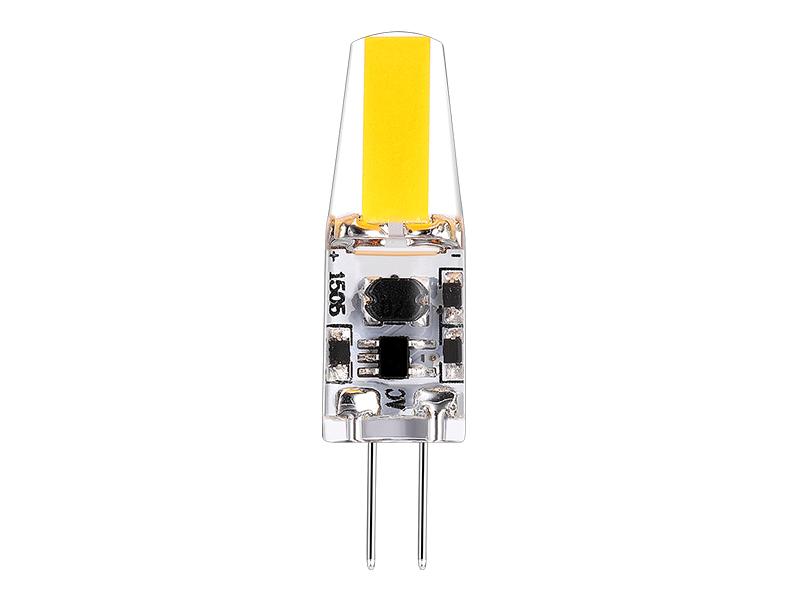

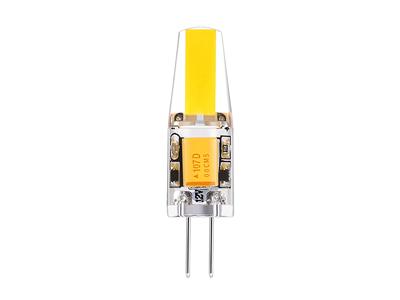

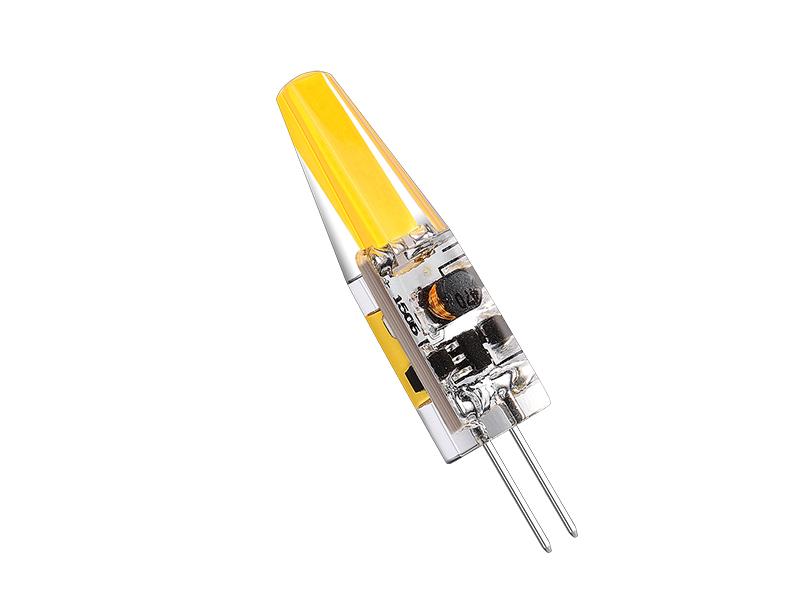

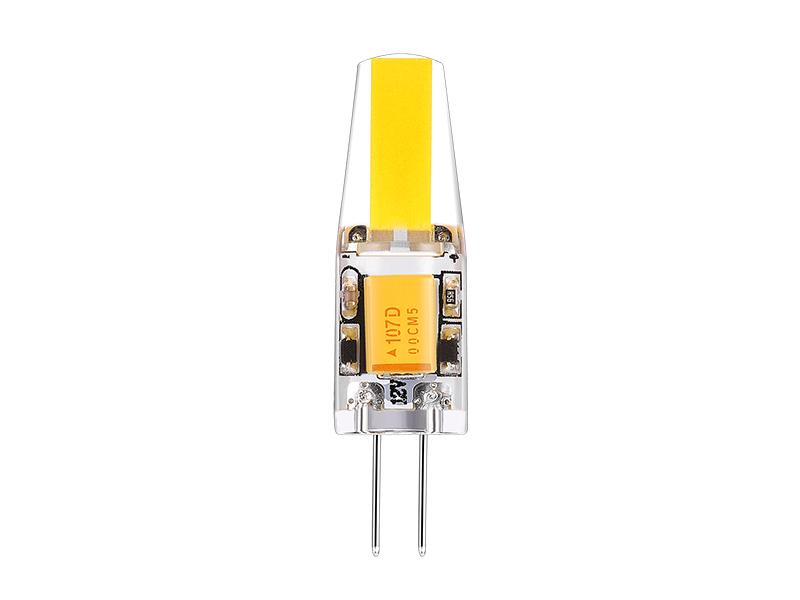

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

DC12V

Silica gel

2.0g

90-100 lm

90-100 lm/W

1.0-1.2W

=1.0

360°

1x0705COB

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

DC12V

Silica gel

2.2g

160-180 lm

90-100 lm/W

1.8-1.9W

=1.0

360°

1x1505COB

Yes

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC/DC10-16V

Silica gel

2.0g

90-100 lm

90-100 lm/W

1.0-1.2W

=1.0

360°

1x0705COB

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC/DC10-16V

Silica gel

2.2g

160-180 lm

90-100 lm/W

1.7-1.8W

=1.0

360°

1x1505COB

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Silica gel

2.6g

160-180 lm

90-100 lm/W

1.7-1.8W

＞0.9

360°

1x1505COB

Yes

CRI≥80

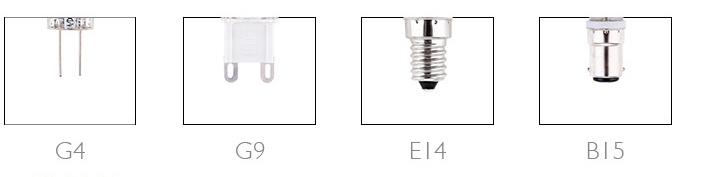

Lamp cap specification

Color temperature

Feature

1. G4-4014-LED light bulb uses 4014 SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
2. The LED light bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots to protect customers' eyes effectively.
3. The LED light has high luminous power and outstanding CRI, and therefore suffices to replace the traditional halogen lamps and filament lamps.
4. G4-4014-LED light bulb emits no heat radiation and contains no mercury, and thus exercises environmental friendliness.
5. The LED light bulb adopts high transparency silica gel sealing to achieve a 360 degree beam angle, high luminous power and enhanced brightness
6. The surface temperature of the LED light product is controlled under 80°. It adopts JCET's Schottky diode as rectifier bridge, eliminating the need for distinguishing the positive and negative electrodes.
7. All components of the G4-4014 LED are surface mounted. Such design enables high automation during manufacturing and increases production efficiency.
8. The lamp base of G4-4014-LED light uses the international standard G4 in-line pins (0.7*12mm, 4mm interval between pins) simplify installation. The LED light can be used in all kinds of quartz lamps to replace traditional halogen lamps.
9. Matching jig is adopted during the manufacturing of the LED light bulb to avoid inclined pins. Sufficient gel is irrigated to ensure no PCB board is bare and secure waterproof property of the product.

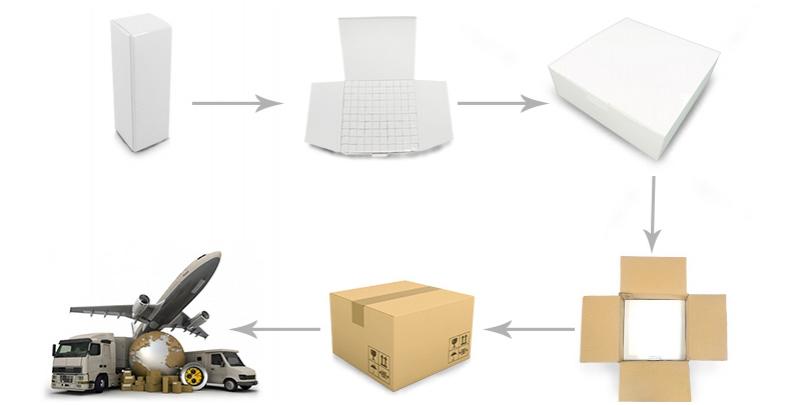

Packaging style

Shunfa is a reliable G4 LED bulb and SMD LED manufacturer, G4 bi-pin COB LED light bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G4 LED light bulbs with custom service.
